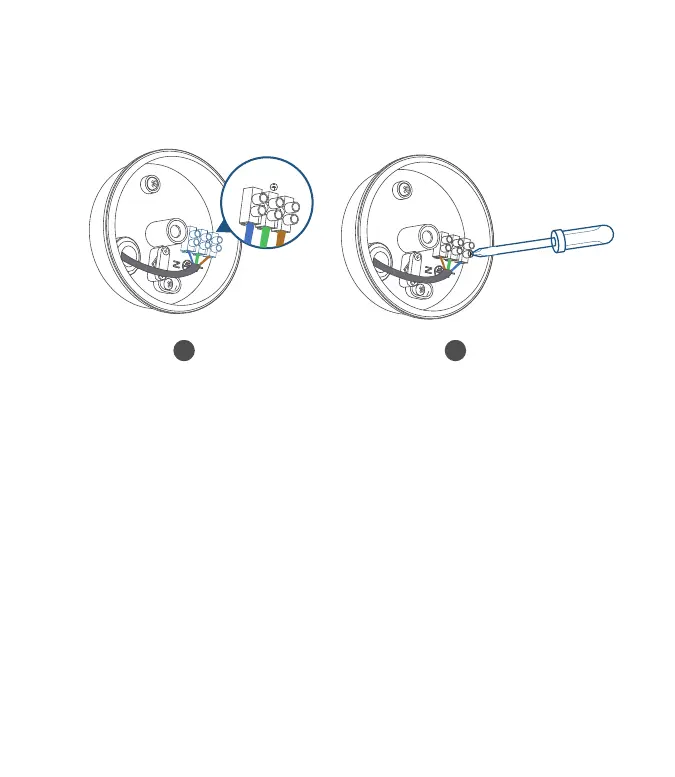

4. Unscrew the bolt with a flat-head screwdriver. Connect the Neutral (blue)
/
Ground (green / green and yellow) / Live (brown) wire to the Neutral
/ Ground / Live wire connector in the junction box respectively. Secure
the wires tightly to prevent wires from falling.
N
L
Neutral
Ground
Live
1 2
3. Install the junction box:
• Orientate the two mounting holes vertically to ensure stable
mounting.
• On wooden walls, DO NOT pre-drill holes. Use the screws provided to
fix the junction box onto the wall.
• On walls that are made out of hard materials, such as stucco, brick, or
concrete, drill holes with a 15/64 inch (6 mm) drill bit, and then insert
the anchors provided into the holes. Use the screws provided to fix
the junction box on the wall.
1 2
