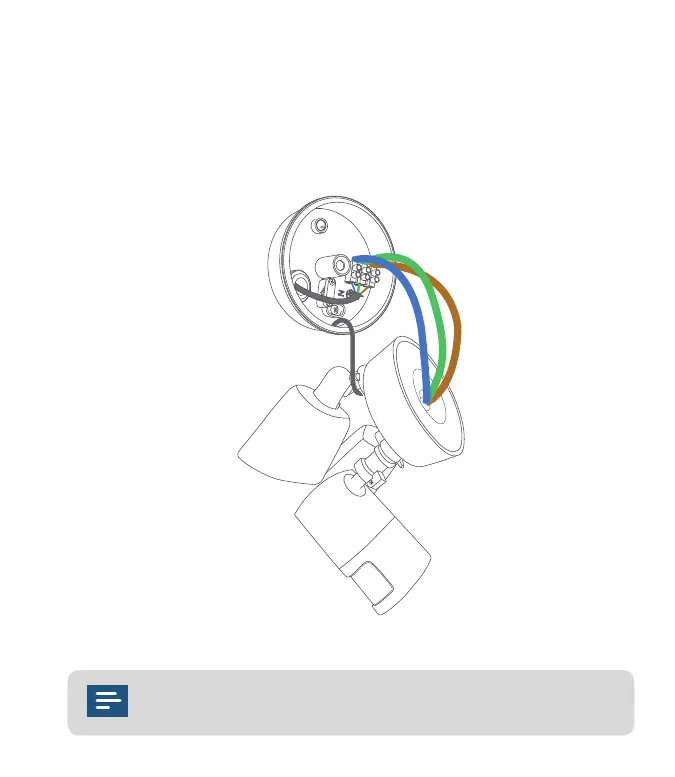

Connect Wires
1. Connect Ground wire from the Floodlight Camera to the Ground wire from
the wire connector in the junction box.
2. Connect the Live / Neutral wire from the Floodlight Camera to the Live /
Neutral wire from the wire connector in the junction box respectively.
3. Secure the wires with a flat-head screwdriver.
Green / green and yellow, brown and blue wires must
connect to the matching colors. Never cross connect.
Mounting Floodlight Camera
Hang Floodlight Camera
Hang Floodlight Camera on the junction box with the hook provided.
