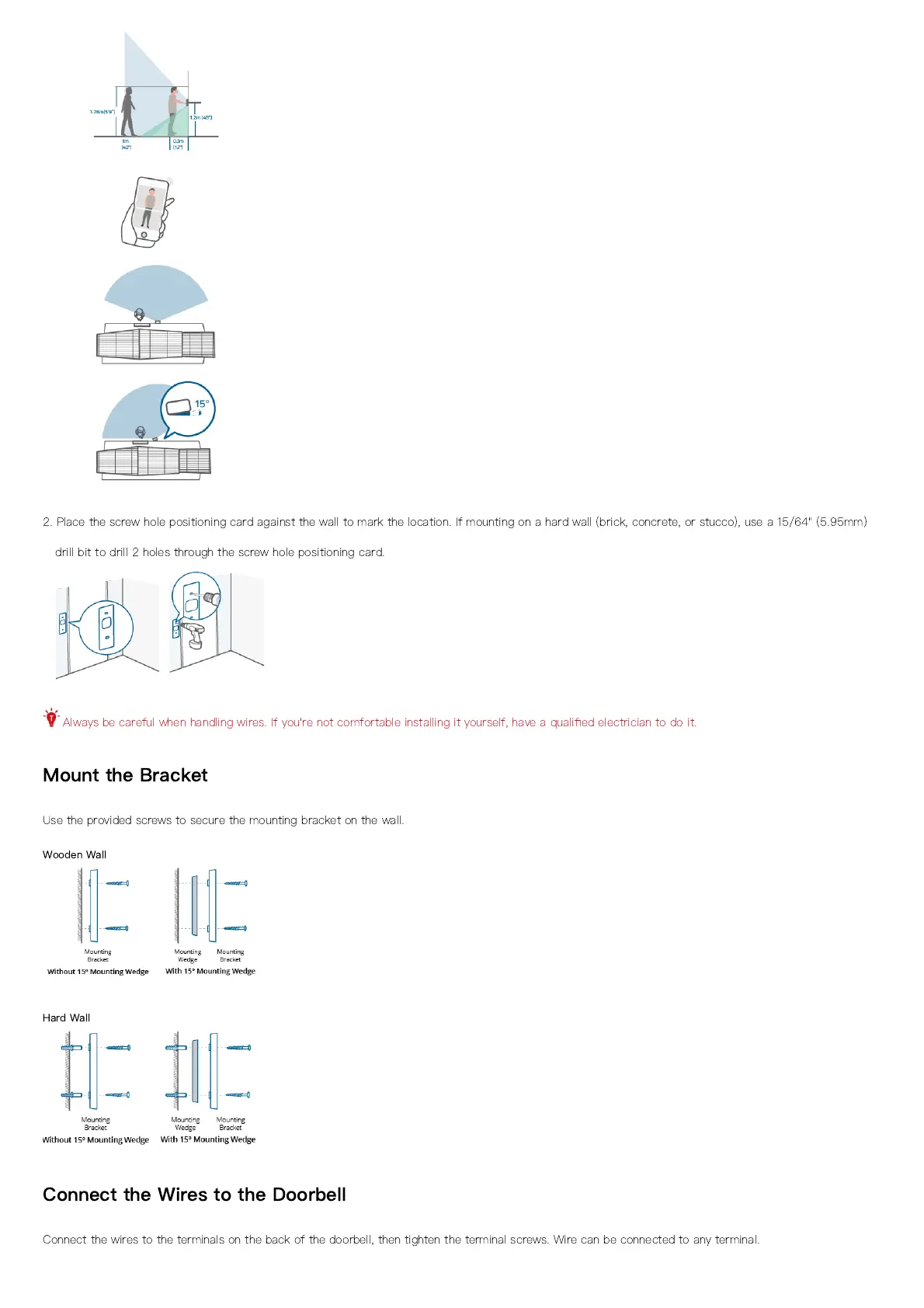

2. Place the screw hole positioning card against the wall to mark the location. If mounting on a hard wall (brick, concrete, or stucco), use a 15/64" (5.95mm)
drill bit to drill 2 holes through the screw hole positioning card.
Always be careful when handling wires. If you're not comfortable installing it yourself, have a quali
fi
ed electrician to do it.
Mount the Bracket
Use the provided screws to secure the mounting bracket on the wall.
Wooden Wall
Hard Wall
Connect the Wires to the Doorbell
Connect the wires to the terminals on the back of the doorbell, then tighten the terminal screws. Wire can be connected to any terminal.
