Eurocave Compact 59 - Dimensions for Technical Door Installation; Technical Door Dimensions and Weight

Wine cabinet installation
Flush-fitting diagrams - Compact 59
www.eurocave.com
Compact Range

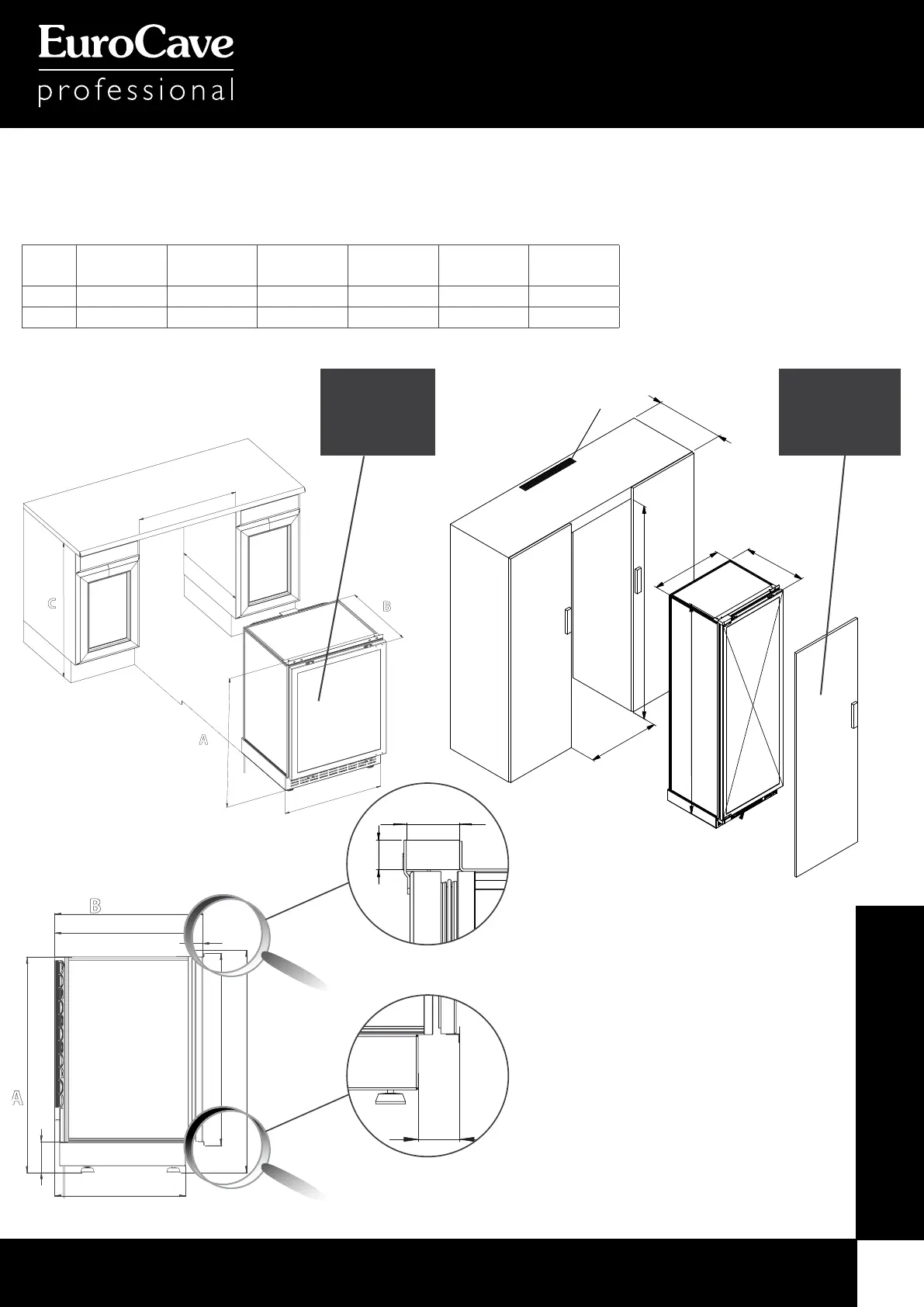

Dimensions to be observed
mini
"
71
23"3/8
23"5/8
22"1/2 mini
* 2-3" depth
\— 23-24" —\
70"3/4 mini
A
C
B
059 259
A max. A min. A max. A min. B C min.
with raising piece
*
with raising piece
*
059 33"5/8 33" 35"5/16 34"5/18 21"5/8 33"3/16
259 71"3/8 70"3/4 73"3/16 72"1/2 22"1/4 71"
.for a technical door
21''5/8
19''3/4
4''7/16
33''
28''5/8
19''1/2
2''
33'' - 33''3/8
A
B
1''
2"
2''3/4
23''5/8
22''1/2
mini
23''3/8
33'' - 33''3/8
4''7/15
19''1/2
A
33'' - 33''3/8
A
C
B
Weight of
door face:
38 Lbs max.
Weight of
door face:
38 Lbs max.
* If Air Vent cannot be
provided for 259, then 2"
clearance is required
behind and on top of unit.
Air Vent
