7. Connect the condensed water drainage hose
(Figure 14, pos. 2) to the back of the indoor
unit (Figure 14, pos. 1).
8. Guide the condensed water drainage hose
(Figure 14, pos. 2) into a bucket
(Figure 14, pos. 3).

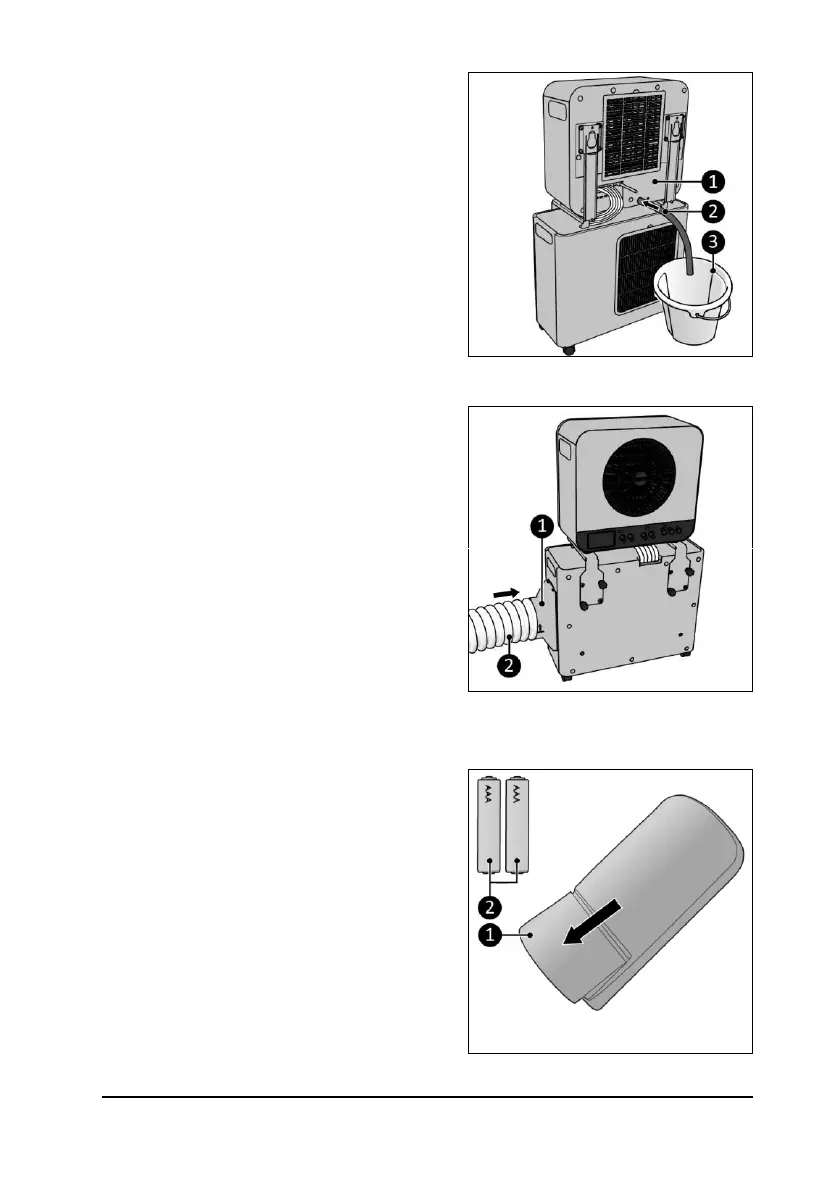

Figure 14
9. Connect the adapter (Figure 15, pos. 1) to the
side of the outdoor unit (Figure 15, pos. 1).
10. Stretch the heat exhaust hose
(Figure 15, pos. 2) slightly at one end and
screw it (anticlockwise) onto the adapter.
11. Guide the heat exhaust hose outside.
Figure 15
Remote control
1. Remove the battery cover (Figure 16, pos. 1).
2. Insert two AAA 1.5 V batteries
(Figure 16, pos. 2) in the battery
compartment. Make sure to insert the
batteries correctly.
3. Replace the cover.
Figure 16
