Assembling the ExerSaucer

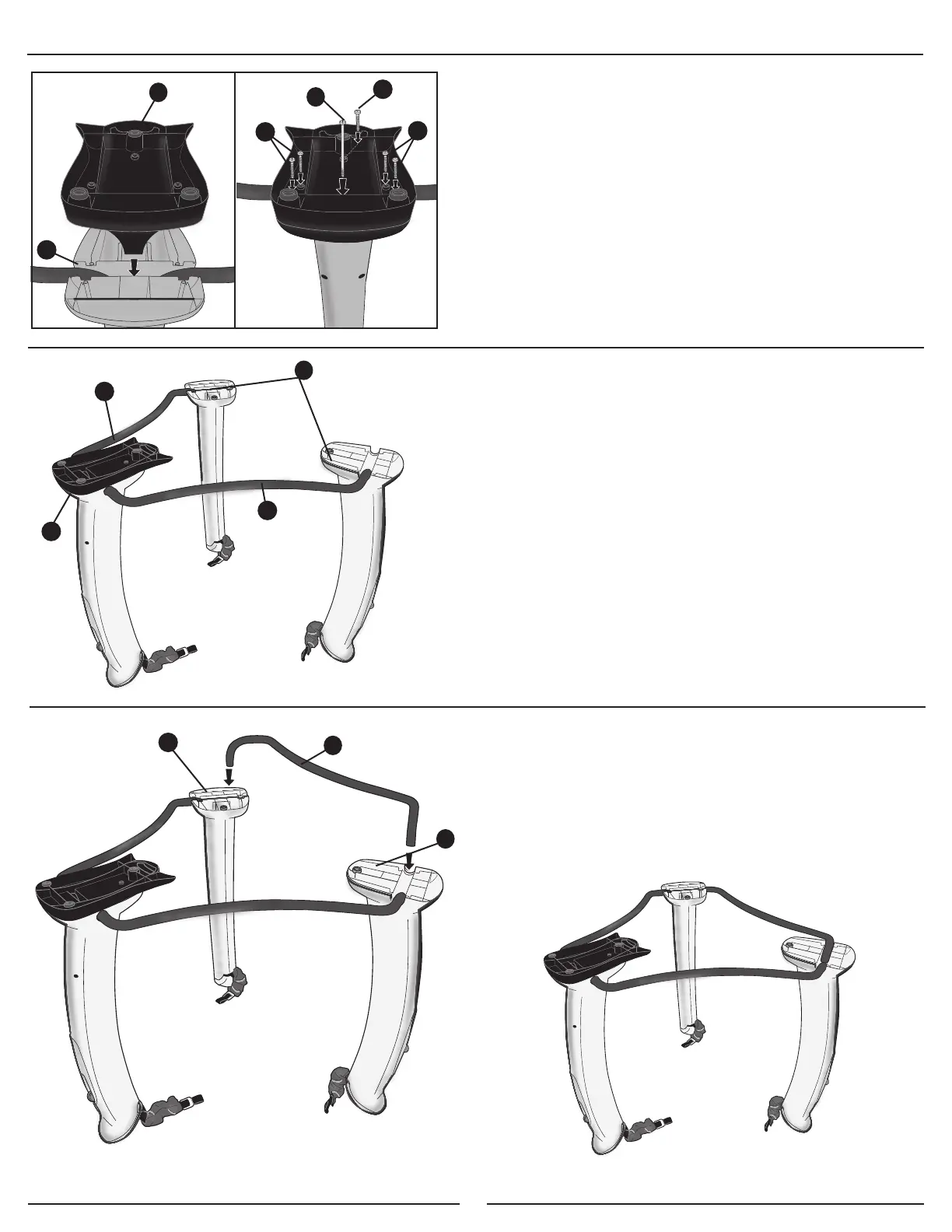

3. Locate the other two pylons B. One at a time, turn them
upside down and completely insert the end of a stabilizer
tube A in each pylon, as shown.
Make sure the stabilizer tubes are fully inserted into the
bottom of each pylon.
2. Insert a foot C into the bottom of the pylon B, as shown.
Secure with one 8-16 X 75 mm screw D and five
8-16 X 18 mm screws E. Tighten all five screws securely but
do not overtighten. DO NOT USE POWER TOOLS.
IMPORTANT: The foot MUST sit completely flat in the bottom
of the pylon. If it is raised on either end, then one of the
stabilizer tubes is not installed correctly or is not fully inserted.
If this is the case, remove the stabilizer tube and reinstall until
the foot fits over it correctly.
4. Locate the third stabilizer tube A and insert into both pylons
B, as shown.
Make sure the stabilizer tube is fully inserted into the bottom
of each pylon.
B
A
B
A
A
B
B
E
E
E
C
D
C
