Evercraft 776-3759 - Page 9

776-3759 9 06/04/12
776-3759

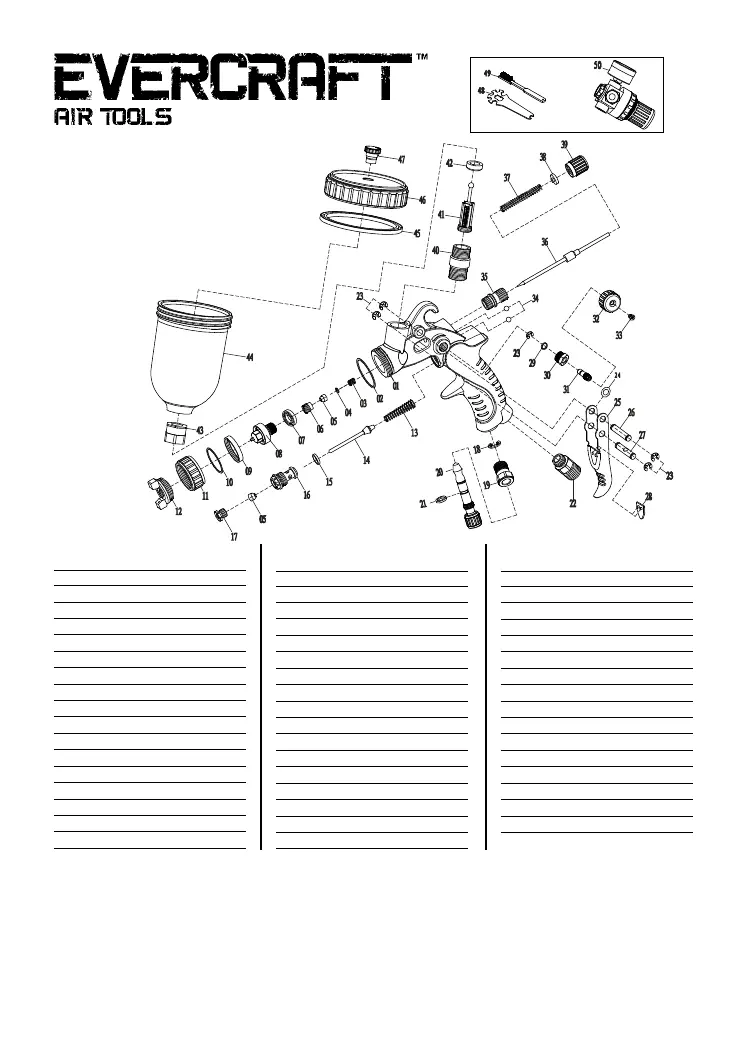

Parts List
and Drawing
ITEM
NO. DESCRIPTION QTY
1 GunBody 1
 2 Gasket 1
3 Needle Sealing Spring 1
 4 Gasket 1
 5 NeedleSealingGasket 2
 6 NeedleSealingScrew 6
 7 AirflowSeparatingRing 1
8 Material Nozzle 1
 9 Locknut 1
 10 SealingRing 1
11 Air Nozzle Circlip 1
12 Air Nozzle 1
13 Air Valve Spring 1
14 Air Valve Stem 1
 15 AirValveGasket 1
 16 AirValveBody 1
 17 AirValveSealingScrew 1
ITEM
NO. DESCRIPTION QTY
18 Opening Stopper 1
 19 AirflowAdj.Seat 1
 20 AirflowAdj.Knob 1
 21 AirflowAdj.SealingRing 1
 22 RotatableConnector 1
23 Opening Stopper 5
 24 TriggerSpringGasket 1
25 Trigger 1
26 Trigger Pin 1
27 Flexible Pin 1
 28 TriggerGasket 1
 29 PatternAdj.Gasket 1
 30 PatternAdj.Seat 1
 31 PatternAdj.Stem 1
 32 PatternAdj.Knob 1
 33 ResetKnob 1
34 Steel Ball 1
Only items identified by part numbers are available separately.
Replacement Parts Available:
RS63759NK Air Nozzle/Fluid Nozzle/Needle Kit (incl. items # 9-13, 37)
RS63759AF Air Flow Adjustment Assembly (incl. items #19-22)
RS63759SW Spray Width Adjustment Assembly (incl. items #28, 30-35)
RS63759F Filter (set of 5) item #42
RS63759C Cup Assembly (incl items #42-48)
RS63759RK Repair Kit (incl. items # 3, 4, 7, 11, 14-16, 24, 29, 43)
RS63759SP Spanner
RS63759APR
AirPressureRegulator
Optional:
RSTK59 Test Cap Kit (not shown)
ITEM
NO. DESCRIPTION QTY
 35 NeedleAdj.Seat 1
36 Needle Set 1
 37 NeedleAdj.Spring 1
38 Needle Spring Seat 1
 39 NeedleAdj.Knob 1
40 Material Passage Connector 1
41 Filter 1
 42 CupSealingGasket 1
43 Cup Connector 1
44 Cup 1
 45 DecorationRing 1
46 Cup Cover 1
47 Cup Cover Cap 1
48 Spanner 1
49 Brush 1
 50 AirPressureRegulator 1
