EBD331e
5
4. Insertthesupplied4Anchorsintothe4holesontheceiling/wall.

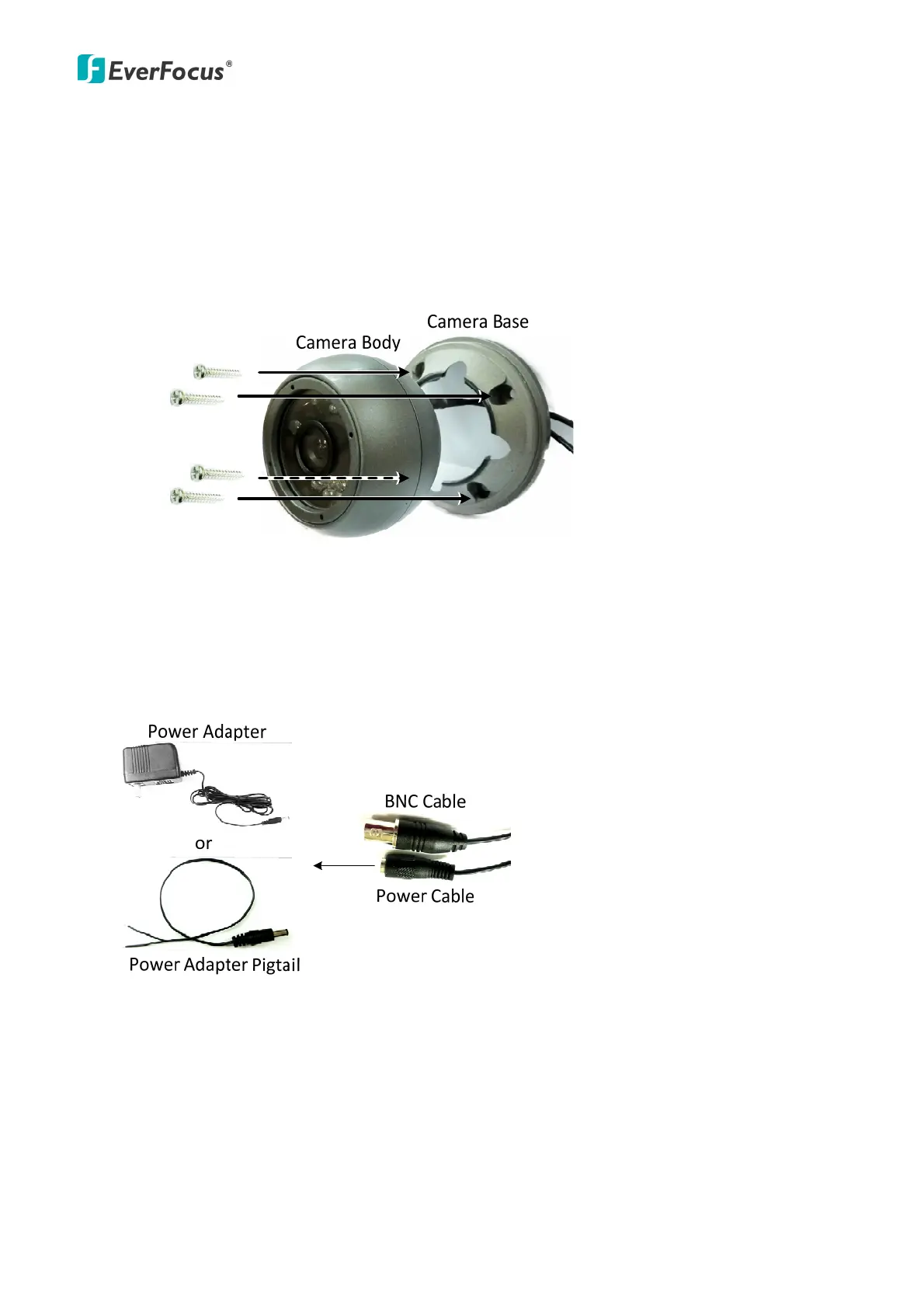

5. ScrewtheCameraBasetotheceiling/wallusingthesupplied4
Screws.
a.IfyouwanttowirethecablesfromthesidecutoftheCamera
Base,runthecablesthroughtheCa
meraBasefir
st,attachand
thenscrewtheCameraBasetotheceiling/wall.


b.Ifyouwanttowirethecablesthroughthewall,attachandthen
screwtheCameraBasetotheceiling/wall.AttachtheCamera
BodytotheCameraBase.
6. Connectthecameratothe12VDCpowersourceusingthesupplied
PowerAdapterPigtailorapoweradapter.

7. ConnectthecameratoaDVRoraportablemonitorusingthe
Video‐Outcableforviewingthecameraviewwhileadjustingcamera
angles.
8. ScrewbacktheOuterHousingandadjustthecameraangle
simultaneously.
9. ScrewbacktheSetScrewusing thesuppliedHexagonWrench.
