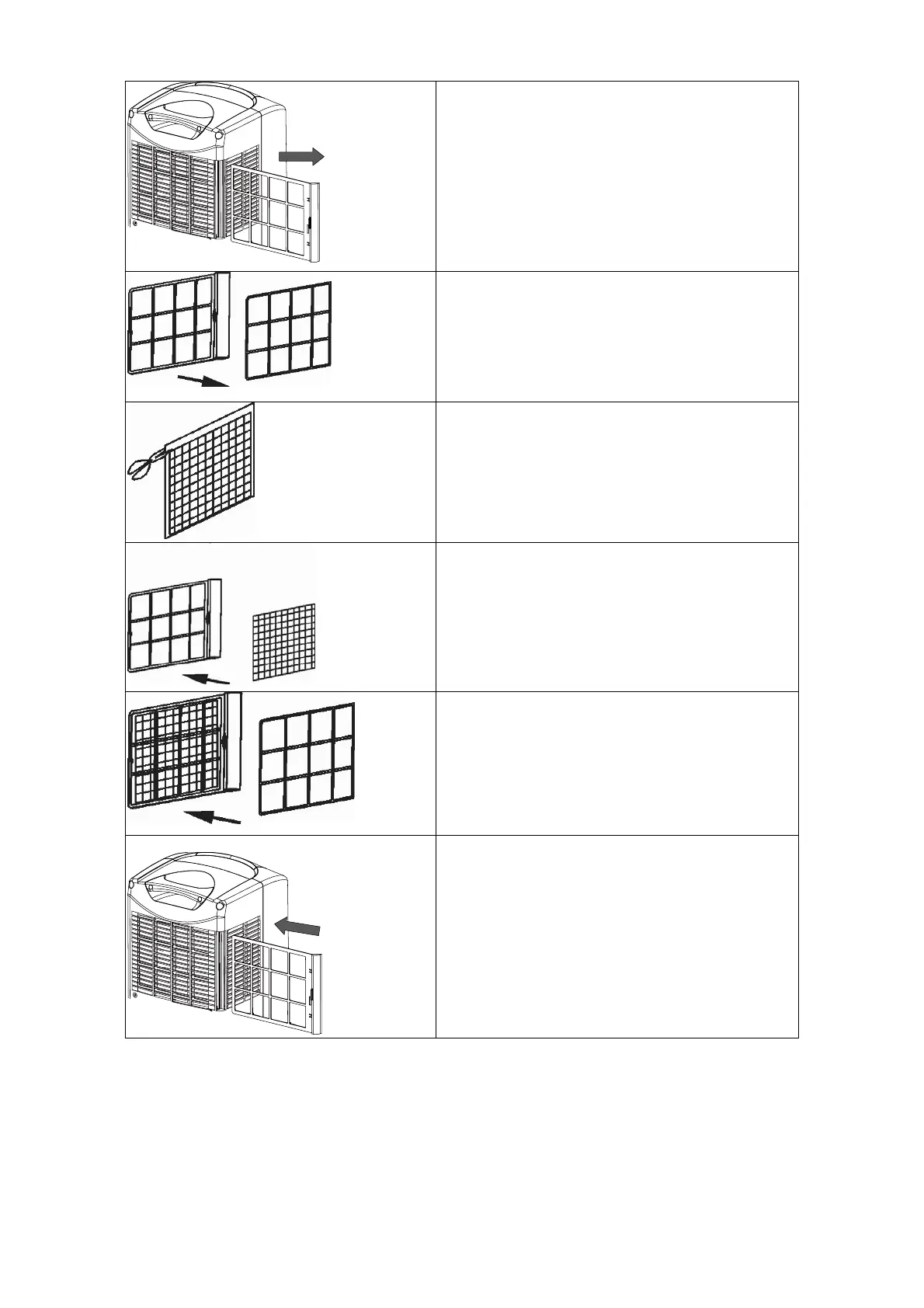

Installation of the carbon filter
FIG.15
1. Remove the filter frame from the unit.
FIG.16
2. Remove the filter fixer from the filter
frame.
FIG.17
3. Remove the active carbon filter from its
plastic bag.
FIG.18
4. Attach the active carbon filter to the filter
frame.
FIG.19
5. Attach the filter fixer to the filter frame (the
active carbon filter should be hold
between the filter frame and filter fixer
firmly).
FIG.20
6. Insert the filter set (filter frame + active
carbon filter + filter fixer ) into the back of
the unit.
