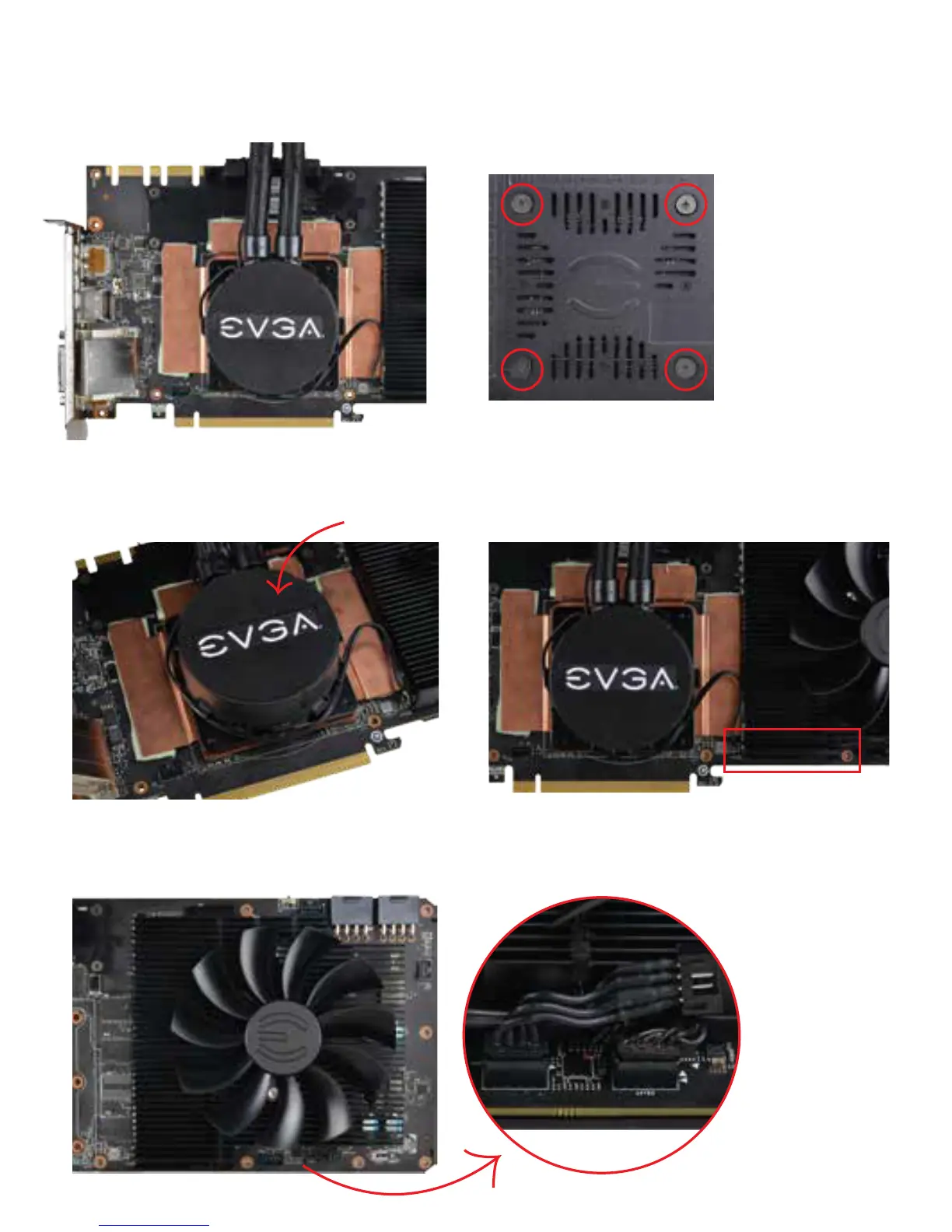

(b) Apply #11 EVA tape to the top of the pump, as shown in the left photo below. Wrap the pump's power
connector around the pump and thread the power cable between the heatsink fins, as shown in the right
photo below (outlined in red).
(c) Plug the pump’s power connector into the left fan header, as shown in the photo below. The Y-cable
will remain unused. Make sure to flatten the cable to be level with the heatsink, to avoid contact with
the fan.
7. Install pump
(a) Install the pump/heatsink on the GPU, making sure to align the hoses and radiator fan wire with the #5
Tube Holder. Carefully hold the pump in place and turn the graphics card over. Install and tighten 4 #6
screws, as shown in the photo below.
To Next Page
