151

ELECTRICAL AND IGNITION

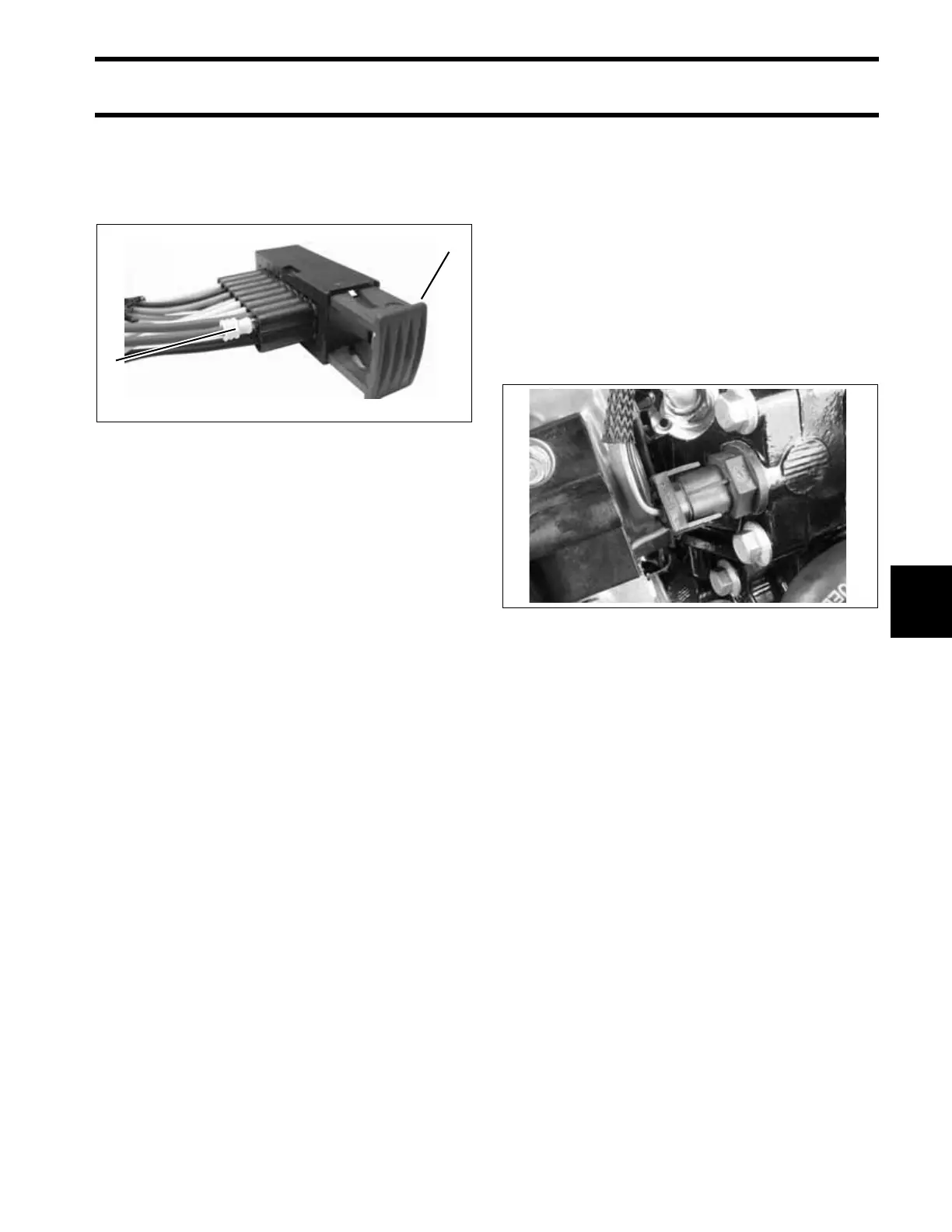

CONNECTOR SERVICING

Terminal Installation

Align terminal with connector housing and push

terminal with seal into connector housing until

seated.

Packard

†

Connectors

IMPORTANT: Always use the appropriate

meter test probes and adapters when testing com-

ponents fitted with these terminals.

Disconnect

Lift latch(s). Remove connector.

Connect

Confirm the seal is in place. Push connector onto

housing until latched.

1. Latch

2. Terminal with seal

002456
