47
INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING
2

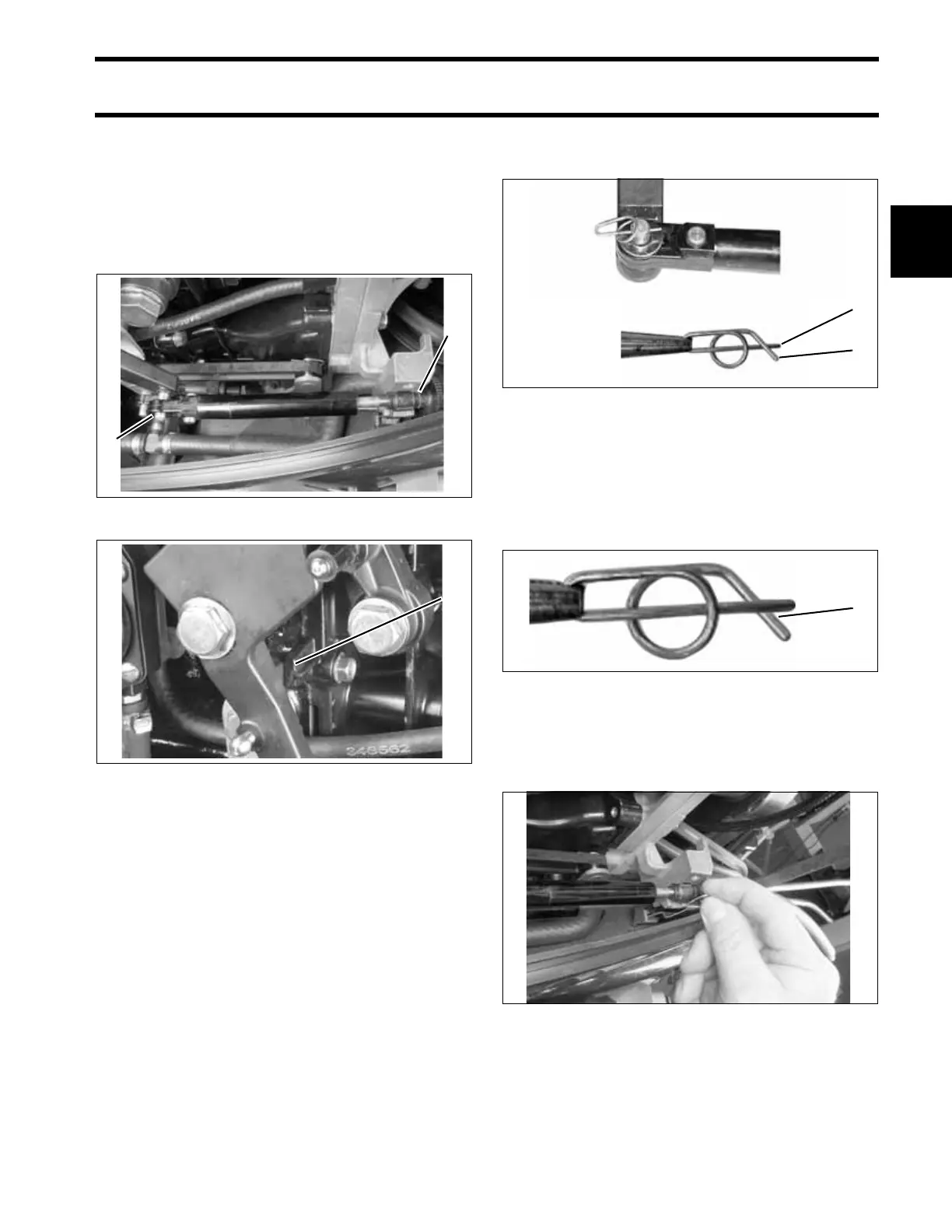

With remote control lever in NEUTRAL, pull firmly
on firmly on throttle cable casing to remove slack.
With engine throttle cam against stop, place the
cable trunnion into the upper anchor pocket and
adjust the trunnion nut so the casing fits onto the
throttle lever pin.
IMPORTANT: Move control handle to FOR-
WARD and pull back slowly to NEUTRAL. Make
sure the engine throttle lever is against the stop. If
not, remove slack by adjusting cable trunnion.
Cable Retainer Clip Installation
When installing retainer clips on control arm link-
age pins, clips should be locked and must not be
bent or deformed.
For proper installation, review the following steps:
• Place washer on pin.
• Position retainer clip with straight section on the
bottom and angled section on the top.
• Use long nose pliers to insert straight section of
clip into linkage pin hole.
• Push the clip towards the hole while lifting on
the curved end with the pliers.
• Be sure retainer clip fully engages the pin.
• Lock the retainer by moving the angled section
behind the straight section.
Make sure remote control provides accurate throt-
tle and shift operation. Then, install cable retainer
and torque screw 60 to 84 in. lbs. (7 to 9 N·m).
IMPORTANT: After installation, make sure there
is enough clearance for all cables to avoid binding
or chafing through all engine steering and tilting
angles.
1. Throttle lever pin
2. Trunnion nut
002101
1. Throttle stop 005111
2
1
1
1. Straight section
2. Angled section
DP0818
DP0817
Locked Retainer Clip
1. Angled section behind straight section
DP0817A
002103
1
2
1
