MIDSECTION
EXHAUST HOUSING

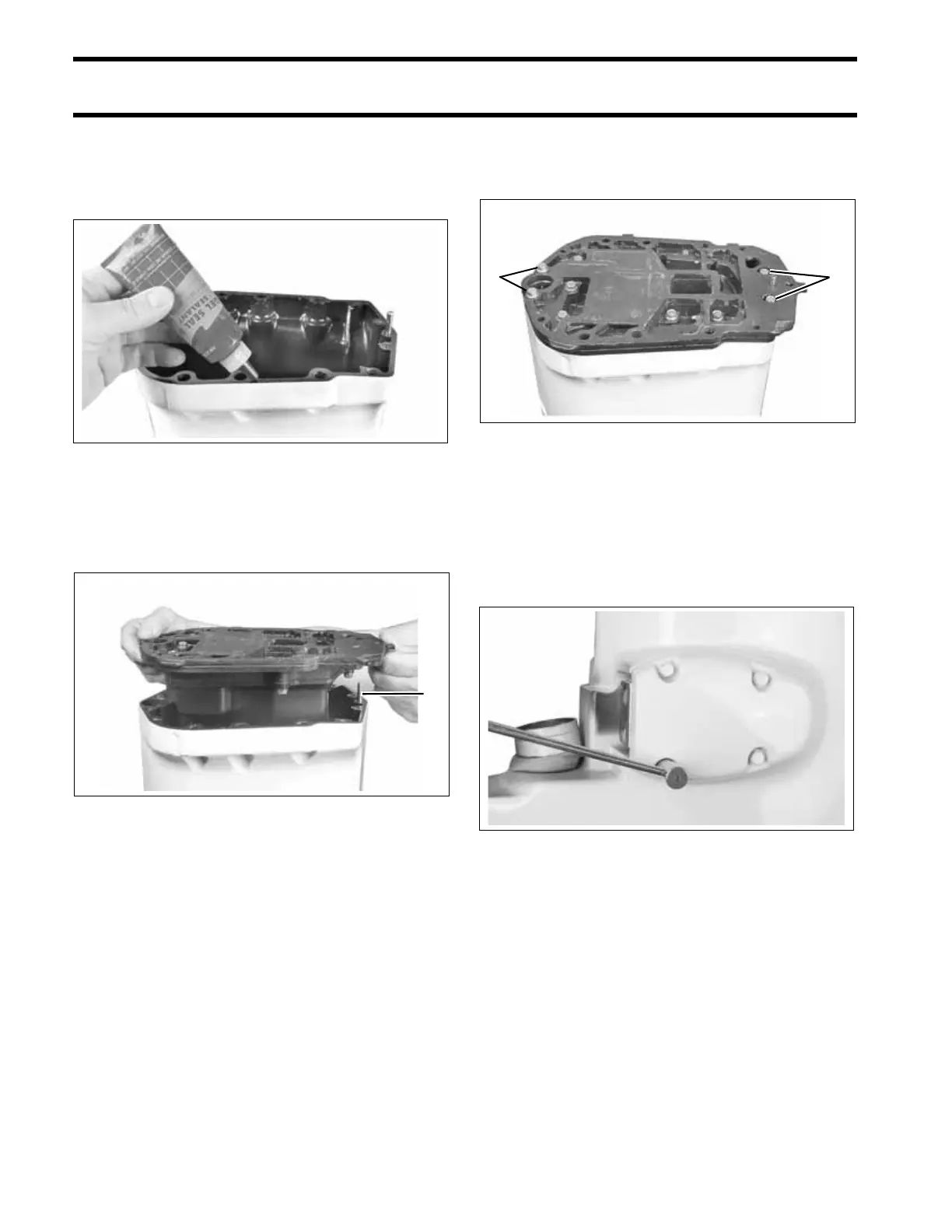

Clean and degrease the adapter housing and
outer exhaust housing mating surfaces with
Cleaning Solvent. Apply Gel-Seal II sealant to the
adapter flange of the exhaust housing.
Place the adapter/inner exhaust housing into the
exhaust housing. Guide the water tube through
the hole in the outer housing and the alignment
pin into the adapter housing.
Apply Gasket Sealing Compound to threads of the
four retaining screws and tighten to a torque of 60
to 84 in. lbs. (7 to 9.5 N·m).
If removed, coat the lower mounts with soapy
water and press into the exhaust housing with the
“OUTSIDE” mark facing outward.
Install the mount covers. Apply Nut Lock to
screws, install washers and screws, and tighten to
a torque of 150 to 180 in. lbs. (17 to 20 N·m).
