Evinrude & Johnson E90DSLSCM User Manual

297
TRIM AND TILT
ADJUSTMENTS
14

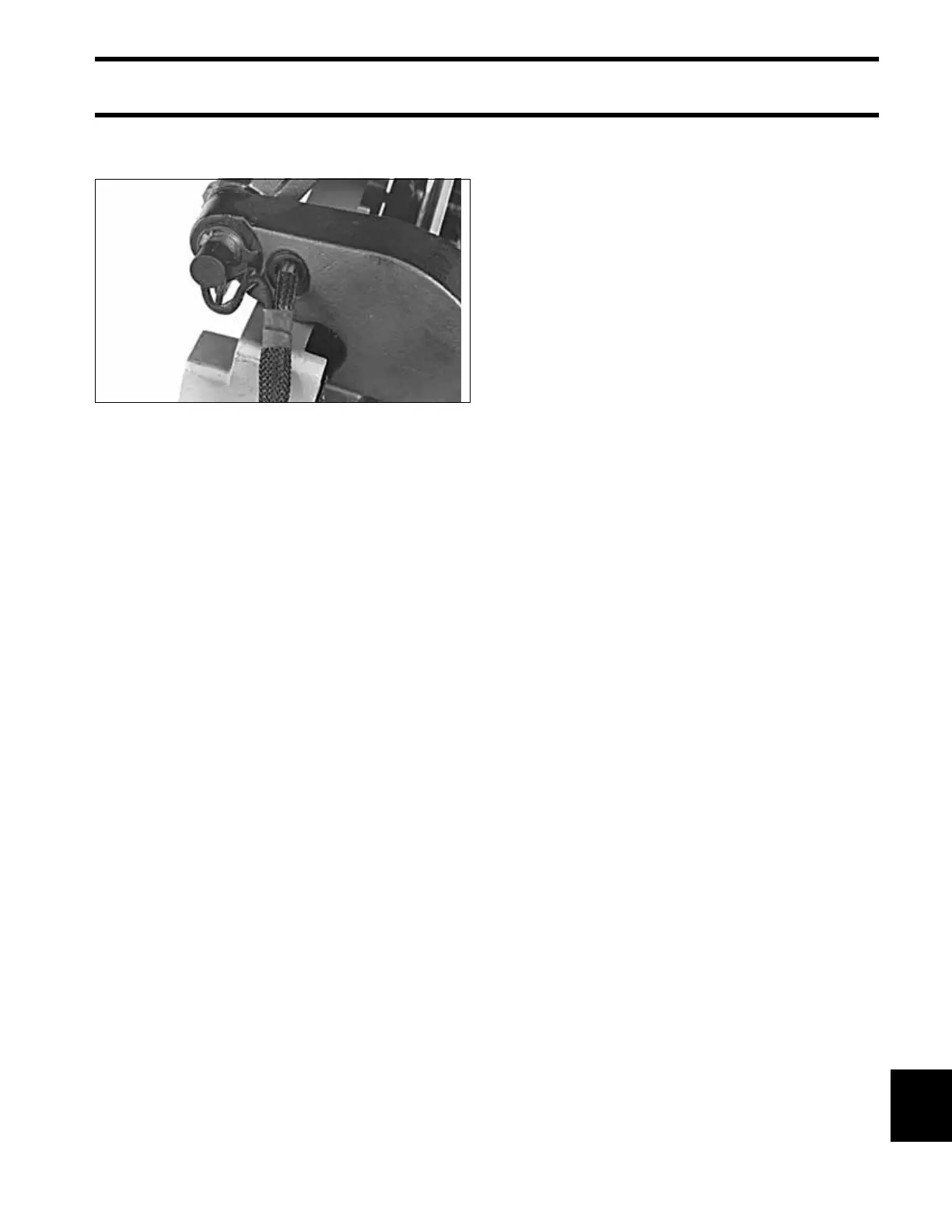

Place trim/tilt wires in braided tube and install
through hole in the stern bracket.
Release the tilt support and lower the outboard.
Tighten the manual release valve to a torque of 45
to 55 in. lbs. (5.1 to 6.2 N·m).
Install connector on trim/tilt cable and reconnect
trim connectors to engine wire harness.
Install lower engine cover. Refer to LOWER
COVER SERVICE on p. 82.
ADJUSTMENTS
Refer to Trim Sending Unit Adjustment on
p. 61.
Refer to Tilt Limit Switch Adjustment on p. 60.
25079
