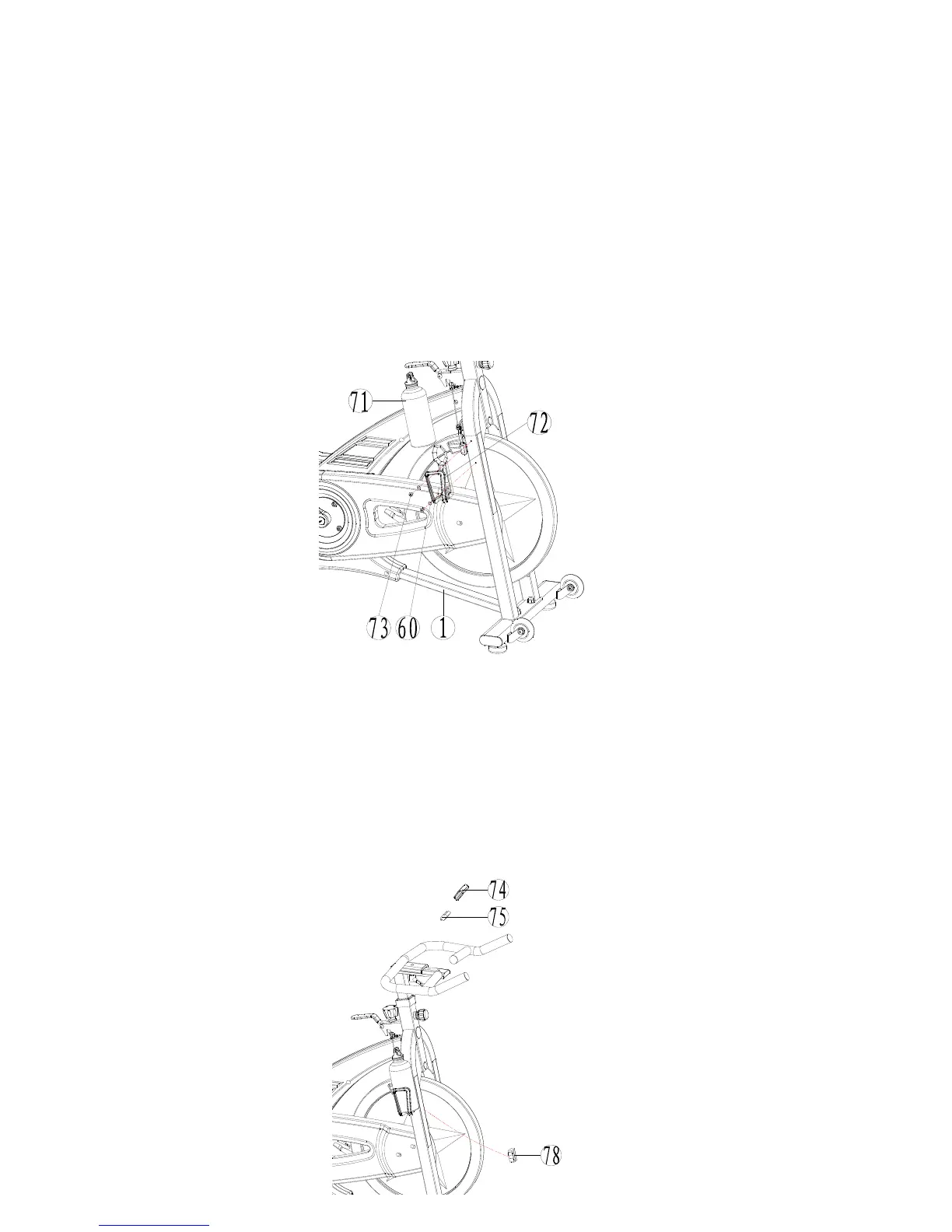

Step 7: Assemble water bottle cage and water bottle
Tighten the water bottle holder (72) to main frame (1) using enclosed tools and put in
the water bottle (71).
Step 8: Assemble the computer
Tighten the computer sensor base (78) under the water bottle holder, facing the flywheel.
Attach the computer shelf (75) and put in the computer (74).
