Installation

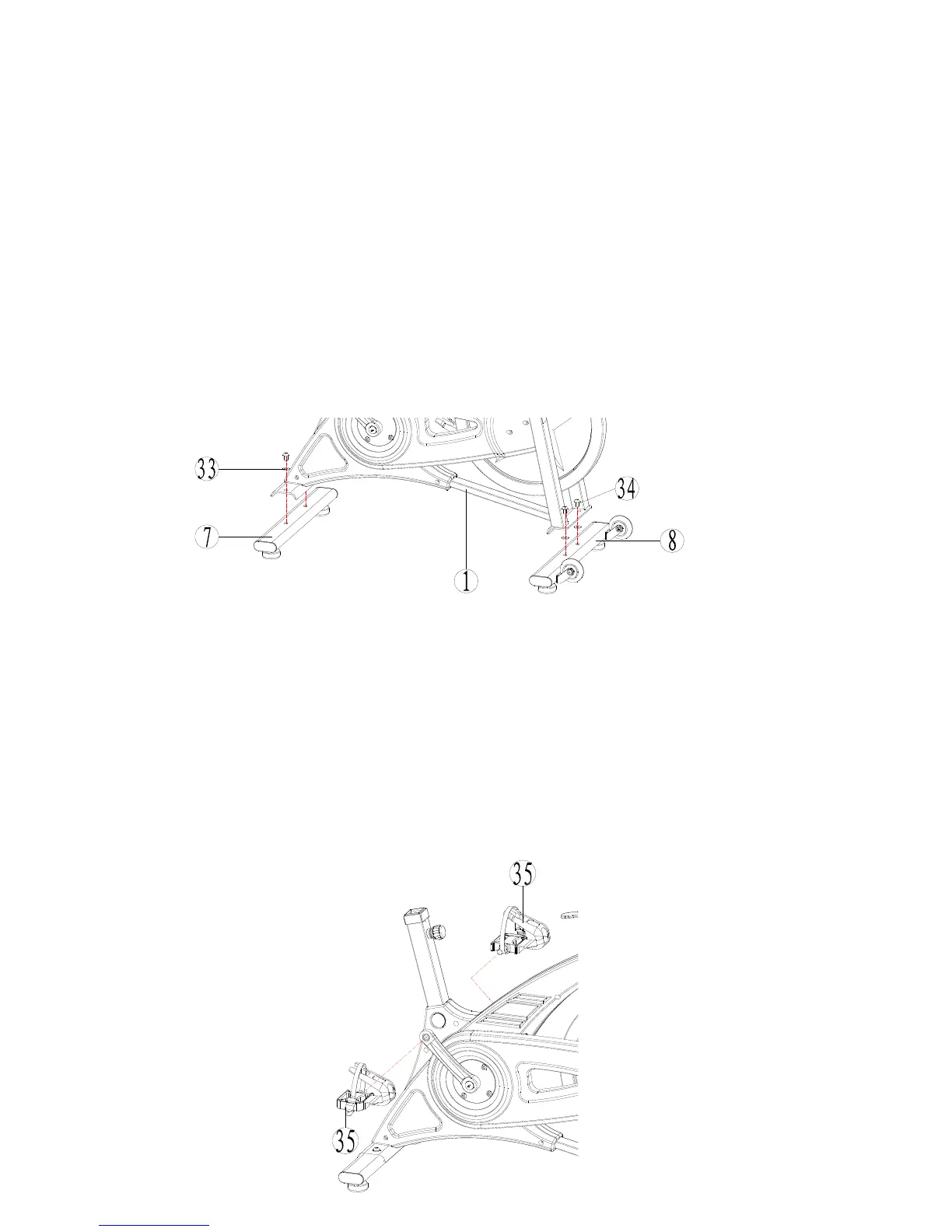

Step 1: Assemble base of bike
Attach the front stabilizer (8) and rear stabilizer (7) to the main frame (1) with inner
hexagon flat round head M10x25L (34), flat washer φ20*φ10*1.5T (33) (4 Pcs / item)
using tools.
Step 2: Assemble left and right pedals.
Connect the right and left pedals (35) to their appropriate crank arms, then tighten
using open spanner 15#.
