1. VIBRATION PLATE
2. FUEL TANK
3. ENGINE ‘ON/OFF’ IGNITION SWITCH
4. THROTTLE LEVER
5. CHOKE CONTROL
6. RECOIL STARTER
7. FUEL TAP
8. ENGINE OIL FILLER/DIPSTICK
9. AIR FILTER
10. SPARK PLUG
11. EXHAUST
12. ENGINE OIL DRAIN PLUG
13. FAST RUN ADJUSTMENT SCREW
14. BELT GUARD
15. ANTI-VIBRATION HAND GRIP
16. TOOL STORAGE
(1)
(14)
(2)
(7)
(5)
(9)
(4)
(13)
(6)
(3)
(8)
(12)
(15)
(16)
(11)
(10)

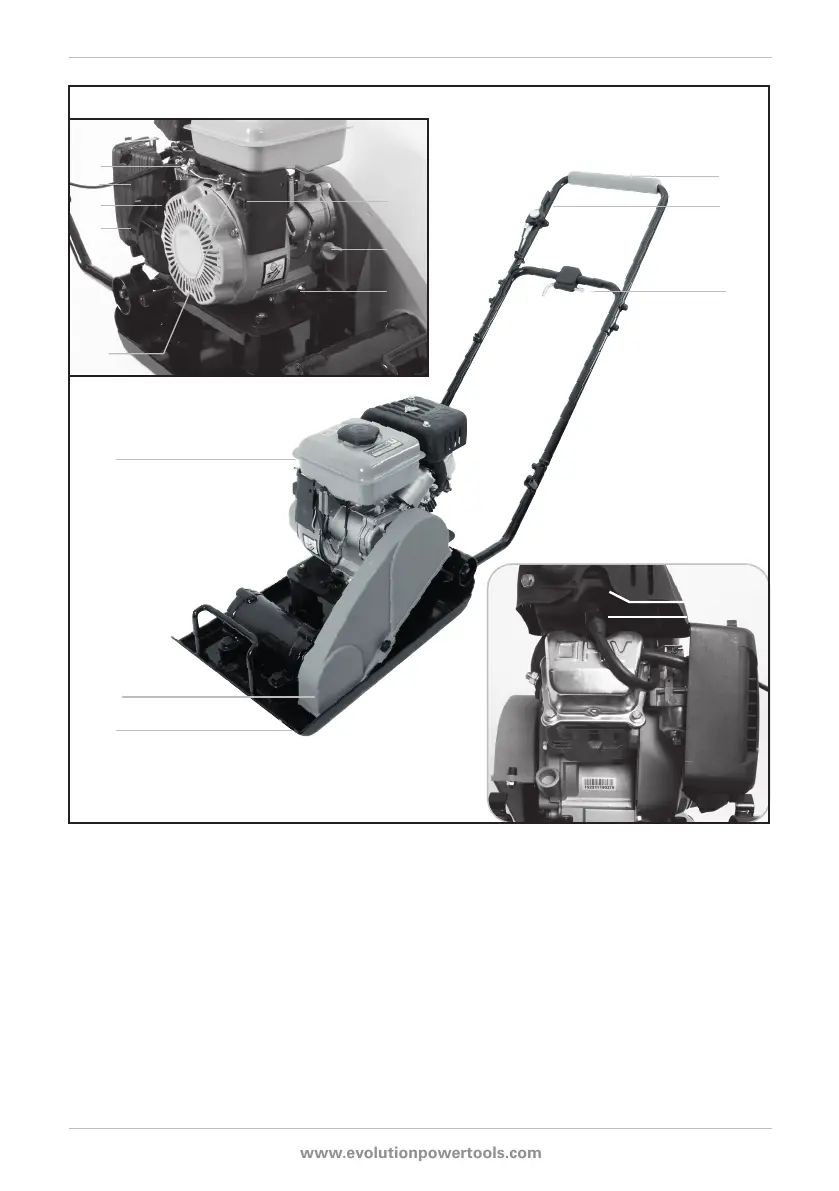

MACHINE OVERVIEW H320-P
