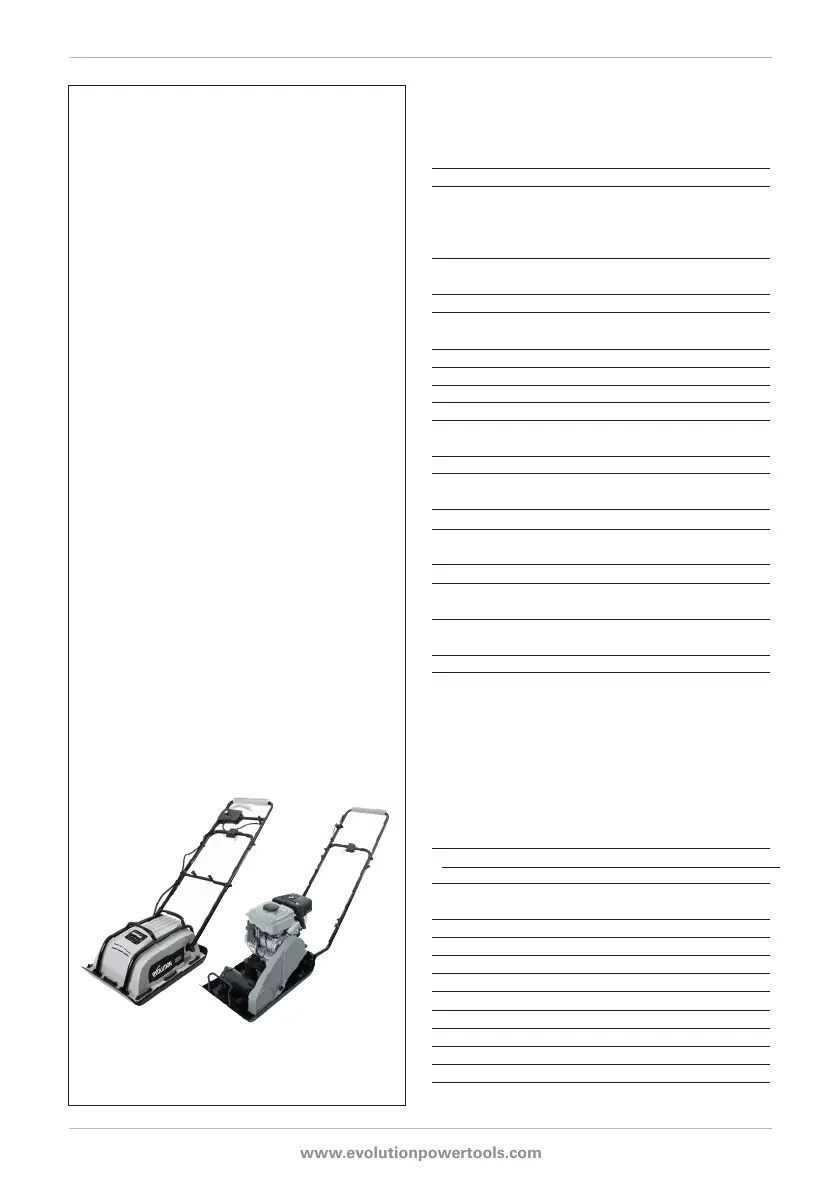

Model Specifications
Evolution Power Tools reserves the right to
make improvements and modifications to the
design and technical specification of this
product without prior notification.
This manual was originally written in English.
Motor EU/UK 220-240V~50Hz 300W, US 120V~60Hz 1.25A
Motor Speed (min
-1
) EU/UK 2860 (no load), US 3450 (no load)
Compaction Force (kN) 5
Recommended Maximum 30
Operator Usage Time (mins)
Sound Power Level (LwA) 76.8 dB(A) K= 3 dB(A)
Sound Pressure Level (LpA) 94 dB(A) K= 3 dB(A)
Vibration (m/sec
2
) 20.33 K = 1.5
Net weight kg (lb) 25.4 (56)
Handle Height (during operations) mm (inches) 920 (36)
Machine Reach (during operations) mm (inches) 1290 (51)
Footprint Width mm (inches) 320 (12-1/2)
Cable Length Metres (Feet) 10 (33)
Insulation Class I
IP44
H320-P
H320-E
Engine Type Single cylinder 4 stroke OHV
Engine Power 1.7 kW 3600 min
-1
Spark Plug Replacement LD E6TC (available from Evolution)
NGK BP6HS
CHAMPION L87YCC
AC DELCO 42FS
Spark Plug Gap 0.028 – 0.031 inches
0.7 – 0.8 mm
Air Filter Replacement Evolution H1S58
Valve Clearances (cold) Inlet 0.15 mm 0.006 inches
Exhaust 0.20 mm 0.008 inches
Compaction Force (kN) 10
Vibration (m/sec
2
) 15.8 K = 1.5
Sound Power Level (LwA) 86 dB(A) K= 3 dB(A)
Sound Pressure Level (LpA) 101 dB K= 3 dB(A)
Operator Usage Time (mins) 20
Recommended Maximum
Oil Type SAE 10W-30/40
Oil Capacity (litres) 0.25
(fl oz) 8.45
Fuel Type E5 & E10 Unleaded Petrol/Gasoline
Fuel Capacity (litres) 1.2
(fl oz) 40.57
Net weight kg (lb) 32.45 (71.5)
Handle Height (during operations - 1020 (40)
extension handle fitted) mm (inches)
Machine Reach (during operations – 1290 (51)
extension handle fitted) mm (inches)
Footprint Width mm (inches) 320 (12-1/2)
