• Thesurfaceisrmandstable.
• Nocombustiblematerialsarecloseby.
• Theareaiswellventilated,andthatthereisnodanger
from the expelled exhaust gases.
Note: The Evo-System Engine is fitted with a low oil level
shut down feature which protects the engine from damage
due to lack of lubrication. This feature could be activated if
the machine is sited on a slope of greater than 10
0
.
2. Preparing the Evolution Evo-System Engine
Note: Refer to the Instruction Manual for the
Evo-System Engine.
• ChecktheFuelLevel.
• ChecktheOilLevel.
• Visuallycheckallfuellinesandelectricalconnections.
3. Starting the Engine
Note: Refer to the Instruction Manual for the
Evo-System Engine

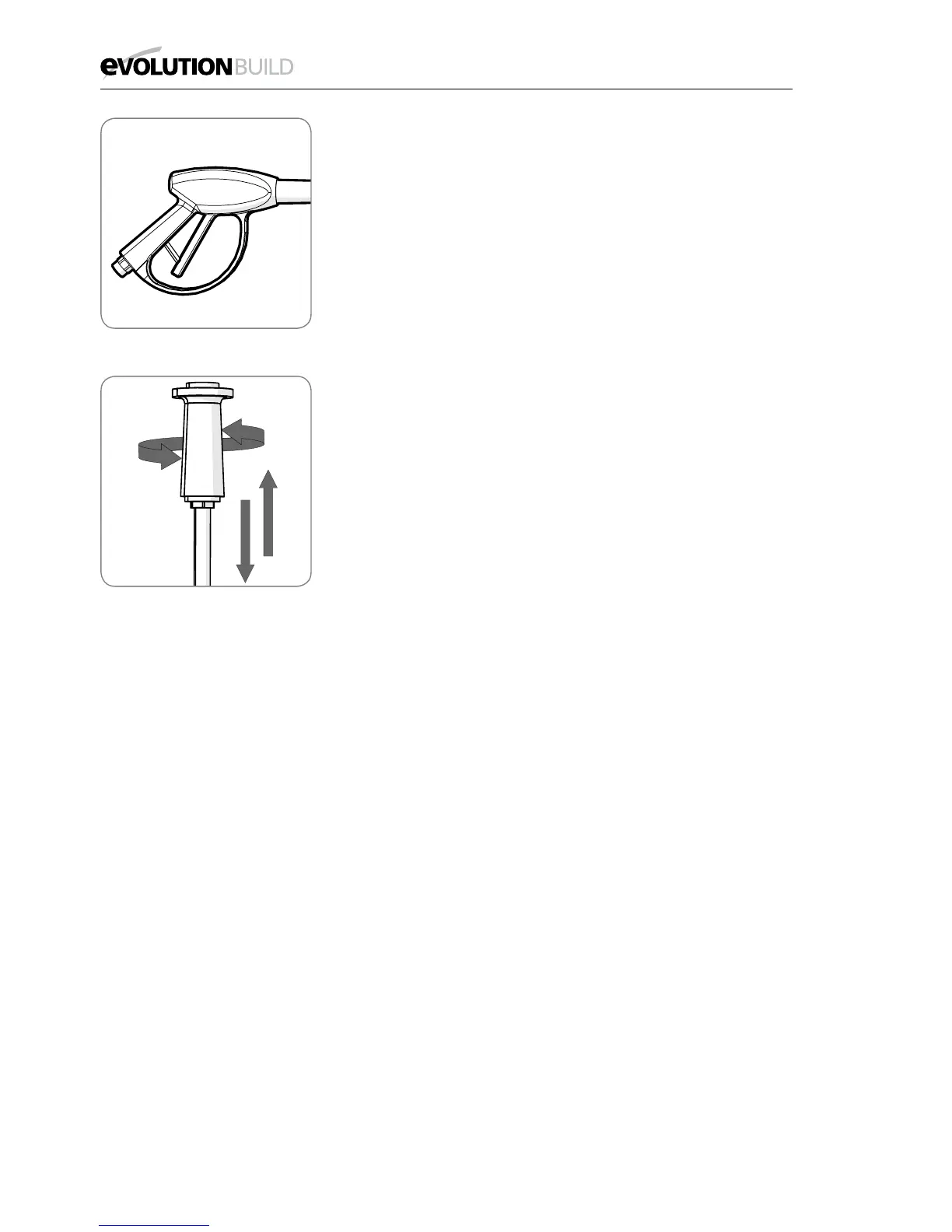

• Checkthatthetriggerswitchonthejetlanceisinthe
locked position. (Fig. 6)
• Checktheintegrityofallhoseconnections.
• Turnonthewatersupplytothepumpandallowwaterto
run into the pump.
• Starttheengine.
• Allowtheenginetoreachitsnormaloperational
temperature.
4. The Lance Nozzle
Note: The Jet Lance has an adjustable outlet nozzle. (Fig. 7)
• Pullthenozzledownwardstoaccess‘lowpressuremode’.
• Pullthenozzleupwardstoaccess‘highpressuremode’.
In either setting, rotating the nozzle to the right, (as seen
from the handle) will result in the water jet emitted from the
nozzle being ‘fan’ shaped.
In either setting, rotating the nozzle to the left, (as seen
from the handle) will result in the water jet emitted from the
nozzle being a thin stream.
Fig. 6
Fig. 7
