Exaco Junior Victorian - Page 3

PROFILE
Article Drawing

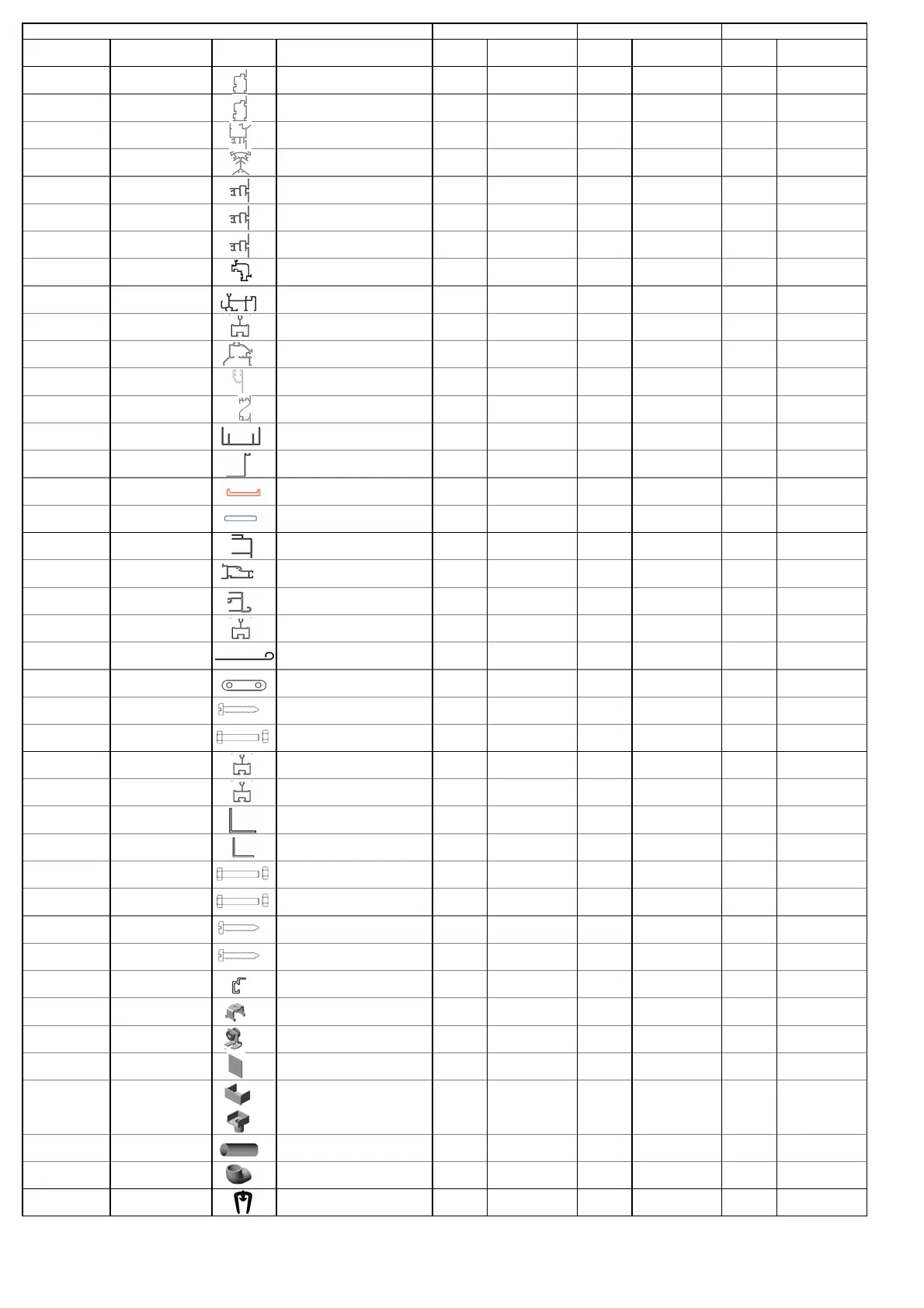

Description
Piece Length Piece Length
PRO 7605 7605-XX
FOUNDATION PROFILE
2 3.074 mm 2 3.812 mm
PRO 7605 7605-XX
FOUNDATION PROFILE
2 2.336 mm 2 2.336 mm
PRO 7606 7606-XX
GUTTER PROFILE
2 3.074 mm 2 3.812 mm
PRO 7607 7607-XX
RIDGE PROFILE
1 3.074 mm 1 3.812 mm
PRO 7620 7620-223
HORIZONTAL GABLE PROFILE
1 2.236 mm 1 2.236 mm
PRO 7620 7620-77LR
HORIZONTAL GABLE PROFILE
2 764 mm 2 764 mm
PRO 7620 7620-77
HORIZONTAL GABLE PROFILE
1 768 mm 1 768 mm
PRO 6999
7618-143
CORNER PROFILE
4 1.430 mm 4 1.430 mm
PRO 7616
7616-143
GABLE ROOF PROFILE
4 1.430 mm 4 1.430 mm
PRO 7619 7619-143
VERTICAL GLAZING PROFILE
16 1.430 mm 20 1.430 mm
PRO 7876 7876-181
TOP DOOR GUIDE
1 1.850 mm 1 1.850 mm
PRO 39796 39796-750
BOTTOM DOOR GUIDE
1 750 mm 1 750 mm
PRO 7608 7608-71
HORIZONTAL DOOR PROFILE
3 709 mm 3 709 mm
PRO 7617 7617-192
VERTICAL DOOR PROFILE
2 1.914 mm 2 1.914 mm
PRO 7624 7624-193
DOOR FRAME SUPPORT POST
2 1.930 mm 2 1.930 mm
L20x10x2 L20x10x2-1611
WALL WIND BRACING
8 1.611 mm 8 1.611 mm
L20x10x2 L20x10x2-2051
ROOF WIND BRACING
4 2.051 mm 4 2.051 mm
PRO 7609 7609-82
VERTICAL WINDOW PROFILE
4 821 mm 4 821 mm
PRO 7610 7610-77
BOTTOM WINDOW PROFILE
2 765 mm 2 765 mm
PRO 7615 7615-77
TOP WINDOW PROFILE
2 765 mm 2 765 mm
PRO 7619 7619-71
GLAZING PROFILE FOR
UNDER ROOF WINDOW
2 708 mm 2 708 mm
OPDRUK
MANUAL WINDOW OPENER
2 - 2 -
PLAT 60x20x5
CONNECTION BRACKET
4 60 mm 4 60 mm
PHILLIPS
4,8x19
PHILLIPS HEAD SCREW 4,8x19
8 - 8 -
SABOUT M6x12
M6X12 BOLTS AND NUTS
4 - 4 -
PRO 7619 7619-63L
GLAZING BAR GABLE L
2 627 mm 2 627 mm
PRO 7619 7619-63R
GLAZING BAR GABLE R
2 627 mm 2 627 mm
PRO 210
40x40x2-290
FOUNDATION ANCHOR
4
300 mm
4
300 mm
L30x30x2 L30x30x2-26
CONNECTION L-BRACKET
11 26 mm 11 26 mm
SABOUTM8 M8x16
Bolt and nut for sliding door
2 - 2 -
SABOUT M6x12
M6X12 BOLTS AND NUTS
136 - 144 -
PHILLIPS
4,8x32
PHILLIPS HEAD SCREW 4,8x32
24 - 24 -
PHILLIPS
4,8x19
PHILLIPS HEAD SCREW 4,8X19
15 - 15 -
PRO 7621 7621-60
GLASS SECURING PROFILE
14 60 mm 16 60 mm
- STOPDEUR
DOOR STOP
2 - 2 -
- WIELTJEDEUR
WHEELS FOR TOP OF DOOR
2 - 2 -
- NOKSTOPJUNIOR
RIDGE PROFILE COVER
2 - 2 -
- GOOTSTOP32
GUTTER END
2 - 2 -
- GOOT32
GUTTER DOWNSPOUT
2 - 2 -
- BUIS32
PVC DOWNSPOUT PIPE
2 - 2 -
- BOCHT-32
DOWNSPOUT ELBOW
2 - 2 -
PRO 1748 1748
RUBBER GASKET
1 44.018 mm 1 49.738 mm
JVIC 24 - 234 x 381
JVIC 23 - 2340 x 3080
