Exaco VI23 - Page 34

E400330
PRO6918
1
2
3
4
PRO6760
PRO1456


Page: H_29

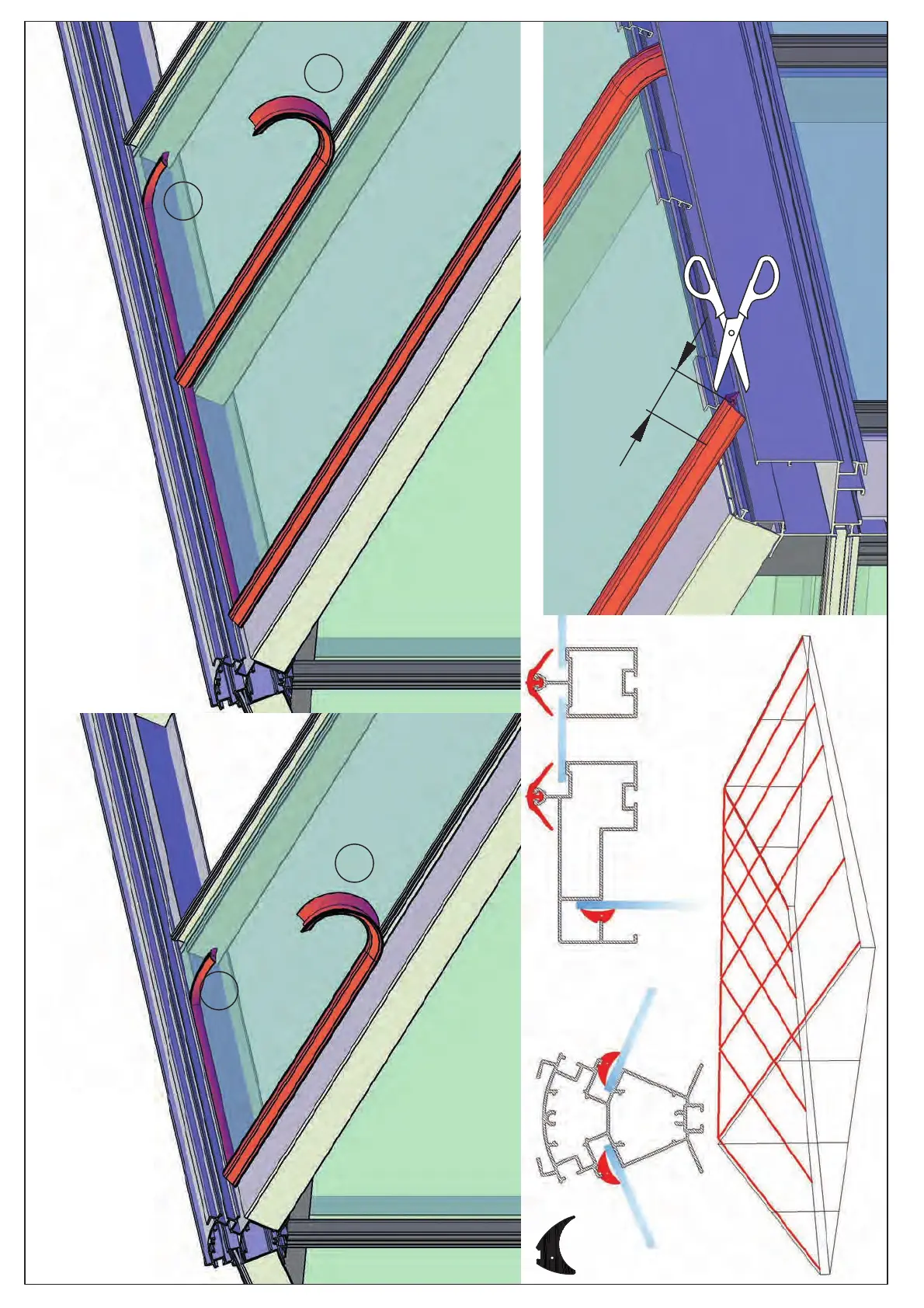

To install heavy gasket, it is easiest to roll it back on itself as shown. This exposes the inner flange that is pushed into the channel. It will be easier to insert when warm and pliable. Install the roof glazing pane by pane, inserting gaskets after each.
