OPTION: Spindle Manual Opener

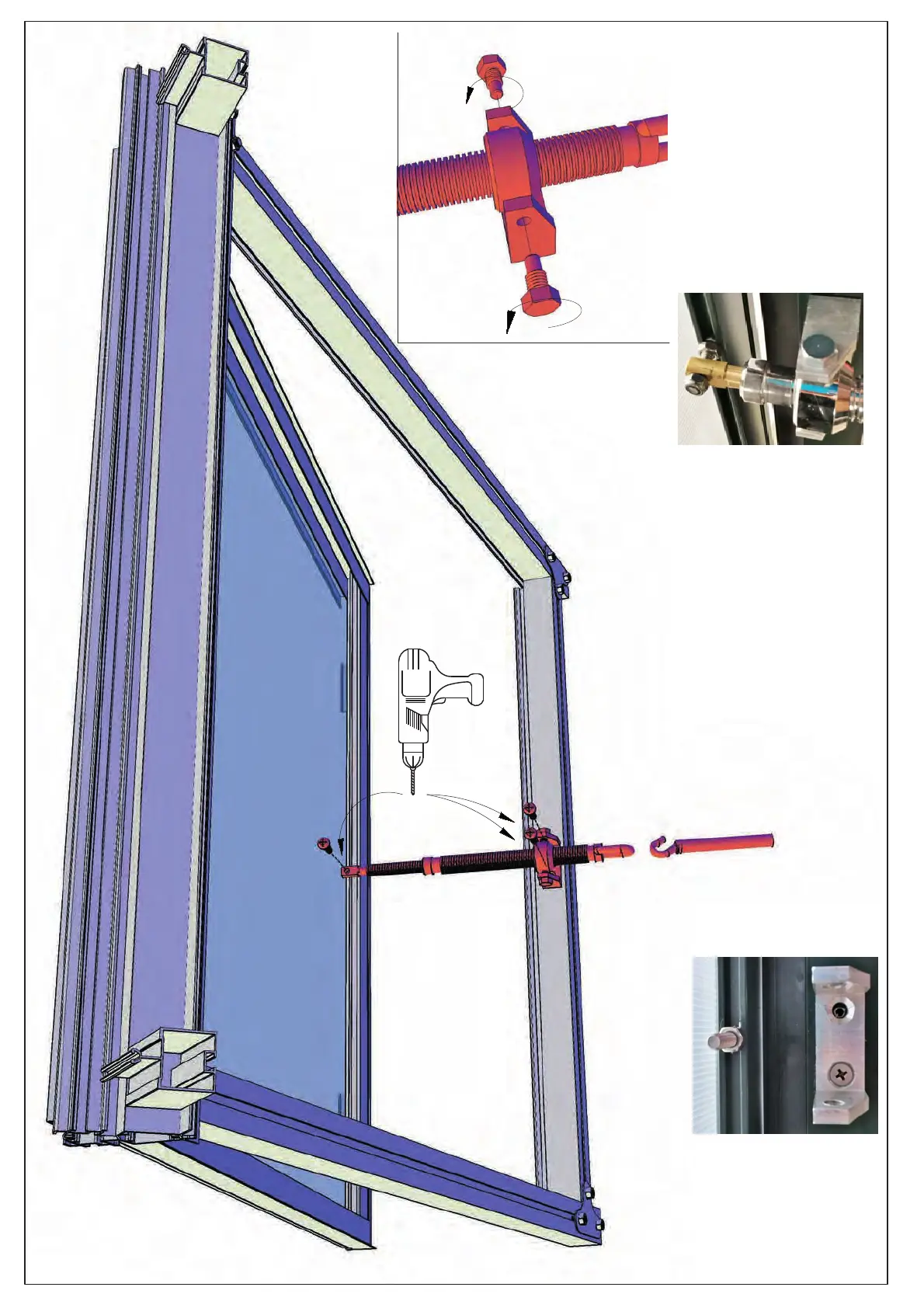

Next, hold the lower U-shaped mount up
to the crossbar and mark the center of
one hole. Using a 1/8" drill bit, drill the
first hole, then screw the bracket on,
check for level - then mark and drill the
second hole. Slide the brass part of the
opener over the bolt in the window
channel. Use the supplied nylock nut to
secure the opener on the top mounting
bolt. Finally thread the large side bolts
into the U-shaped mount and the opener
is installed.
Installation Option 1:
Mount top of opener to
window with a screw
Installation Option 2: Insert a 1 inch long bolt
into lower roof window channel. Slide to the
center and lock it in place with a nut as
shown below.
