Exaco VI23 - Page 65

Vi23
Vi34/36

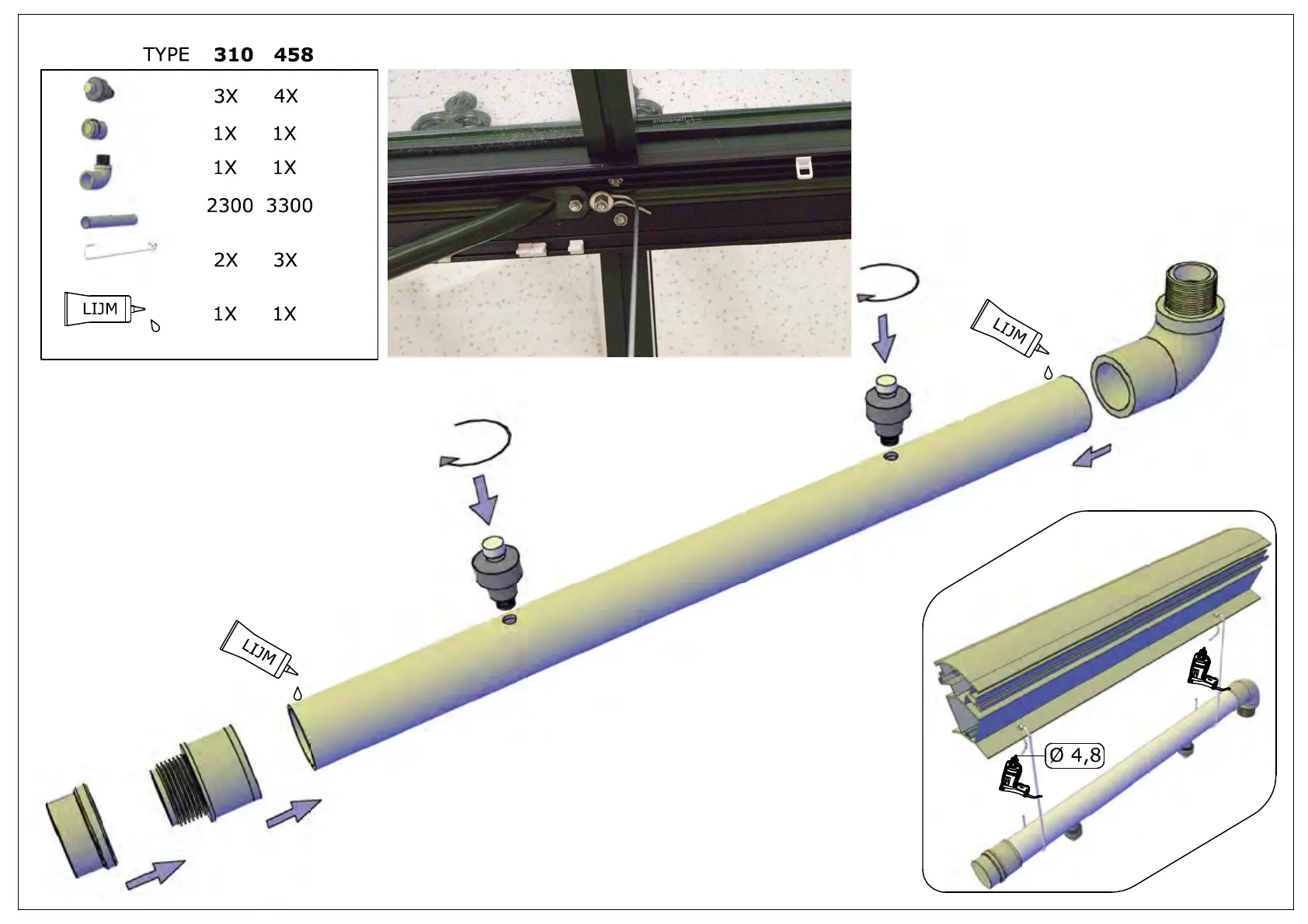

Note: If curtains are going to be installed, the
misting system should be hung with bolts as shown
to the left. The hangers will need top be bent into
position.
If there are no curtains it can be hung by drilling
holes and hooking the hangers through them.
(Shown below)
Misting System
DA 5
(If Equipped)
