eXact 240 - Page 10

I
240~664

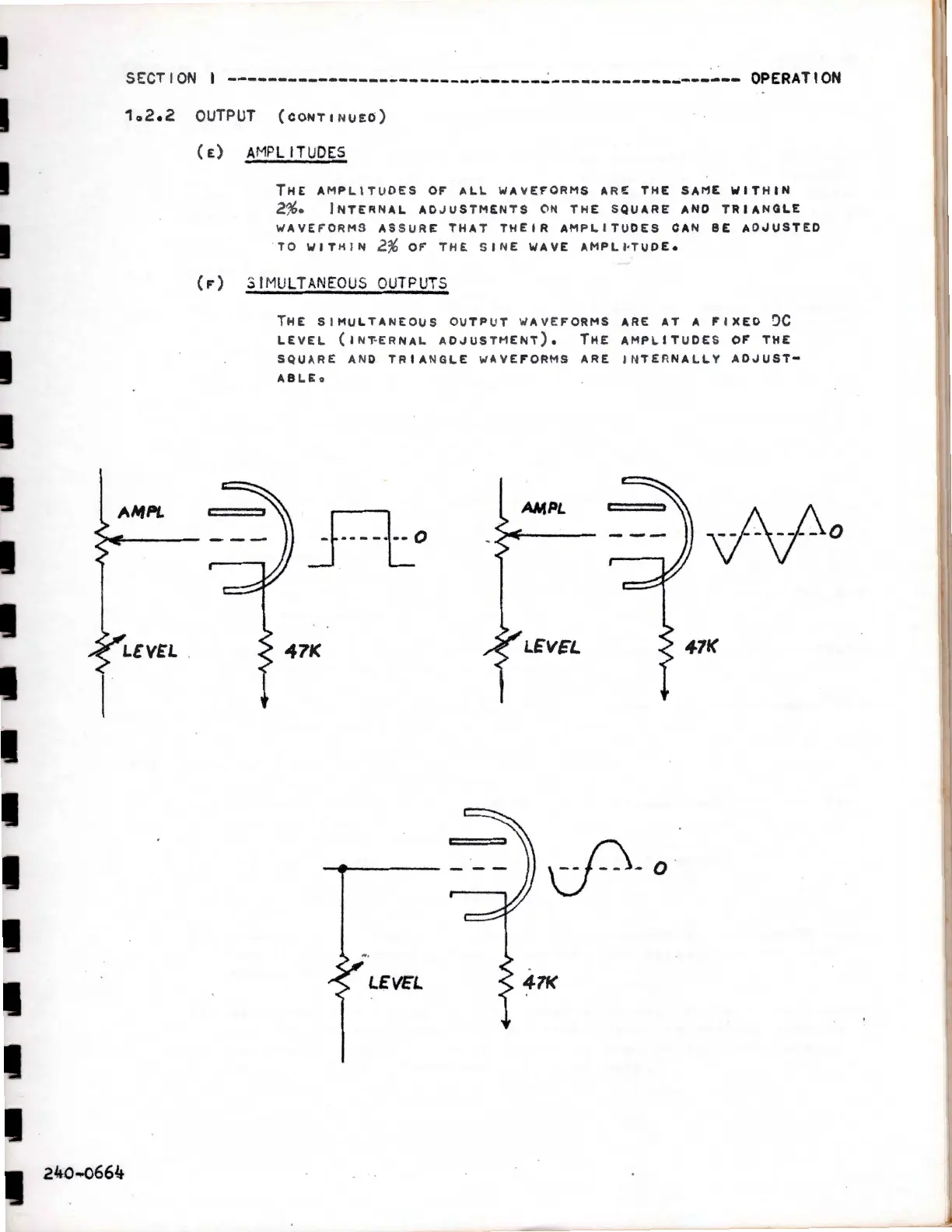

SECTION I-------------------------~------------------~------ OPERATION
1~2.2 OUTPUT (CONTINUE~)
(£) AMPLITUDES
THE AMPLITUOES OF ALL WAVEFORMS AR~ THE SAME WITHIN
2%. INTERNAL ADJUSTMENTS ON THE SQUARE ANO TRIANGLE
WAVEFORMS ASSURE THAT THEIR AMPL!TUOES CAN BE ADJUSTED
' TO WITHIN 2% OF THE SJNE WAVE AMPL~TUOE.
(~) 31MULTANEOUS OUTPUTS
THE SIMULTANEOUS OUTPUT WAVEFORMS ARE AT A FfXEO QC
LEVEL (iN~ERNAL ADJUSTMENT). THE AMPLSTUOES Or TH£
SQUARE ANO TRIANGLE WAVEFORMS ARE INTEP.NALLY AOJUST-
ABLEo
LEVEL
cP-o
l£VEL
