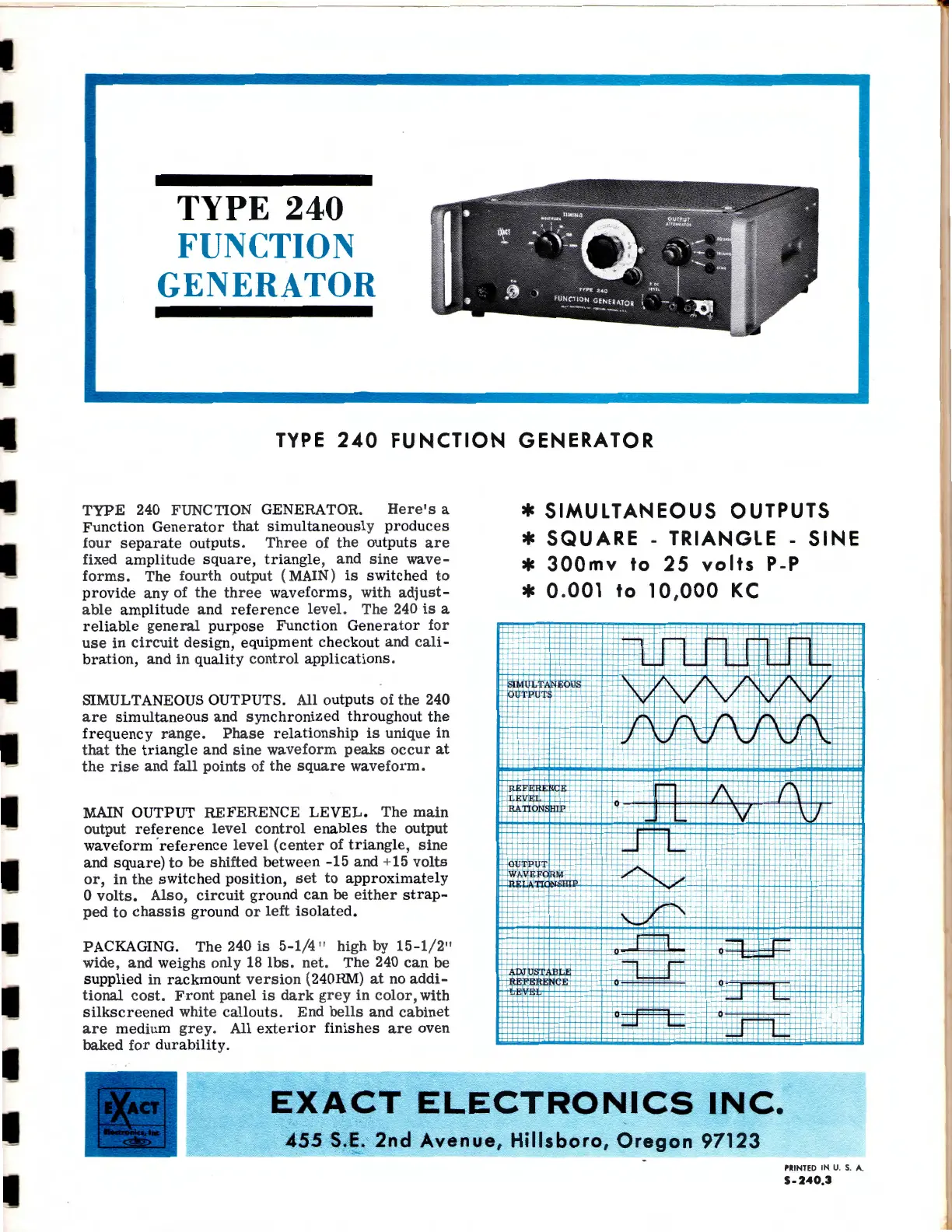

TYPE 240
FUNCTION
GENERATOR
TYPE 240 FUNCTION GENERATOR
TYPE 240 FUNCTION GENERATOR. Here's a
Function Generator that simultaneously produces
four separate outputs. Three of the outputs are
fixed amplitude square, triangle , and sine wave-
forms. The fourth output ( MAIN) is switched to
provide any of the three waveforms , with adjust-
able amplitude and reference l evel. Th e 240 is a
reliable general purpose Function Generator for
use in circuit design ; equipment checkout and cali-
bration, and in quality control applications.
SIMULTANEOUS OUTPUTS. All outputs of the 240
are simultaneous and synchronized throughout the
frequency range. Phase relationship is unique in
that the triangle and sine waveform peaks occur at
the rise and fall points of the square waveform.
MAIN OUTPUT REFE RENCE LEVEL. The main
output reference leve l control enables the output
waveform · reference level (center of triangle, sine
and square) to be shifted between -15 and +15 volts
or, in the switched position, set to approximately
O volts. Also, circuit ground can be either strap-
ped to chassis ground or left isolated.
PACKAGING. The 240 is 5-1/4 " high by 15-1 / 2"
wide, and weighs only 18 lbs. net. The 240 can be
supplied in rackmount version (240RM) at no addi-
tional cost. F-ront panel is dark grey in color, with
silkscreened white callouts. End bells and cabinet
are medium grey. All exterior finishes are oven
baked for durability.
* SIMULTANEOUS OUTPUTS
* SQUARE - TRIANGLE - SINE
* 300mv to 25 volts P-P
* 0.001 to 10,000 KC
EXACT ELECTRONICS INC.
455 S.E. 2nd Avenue, Hillsboro, Oregon 97123
------------
,RINTED IN U. S. A.
S-240.3
