SEC TIO N I ---------- - -- - - -- -- -~- ---- ------- ---- -----------~---OPERATION
1.2
240-0664

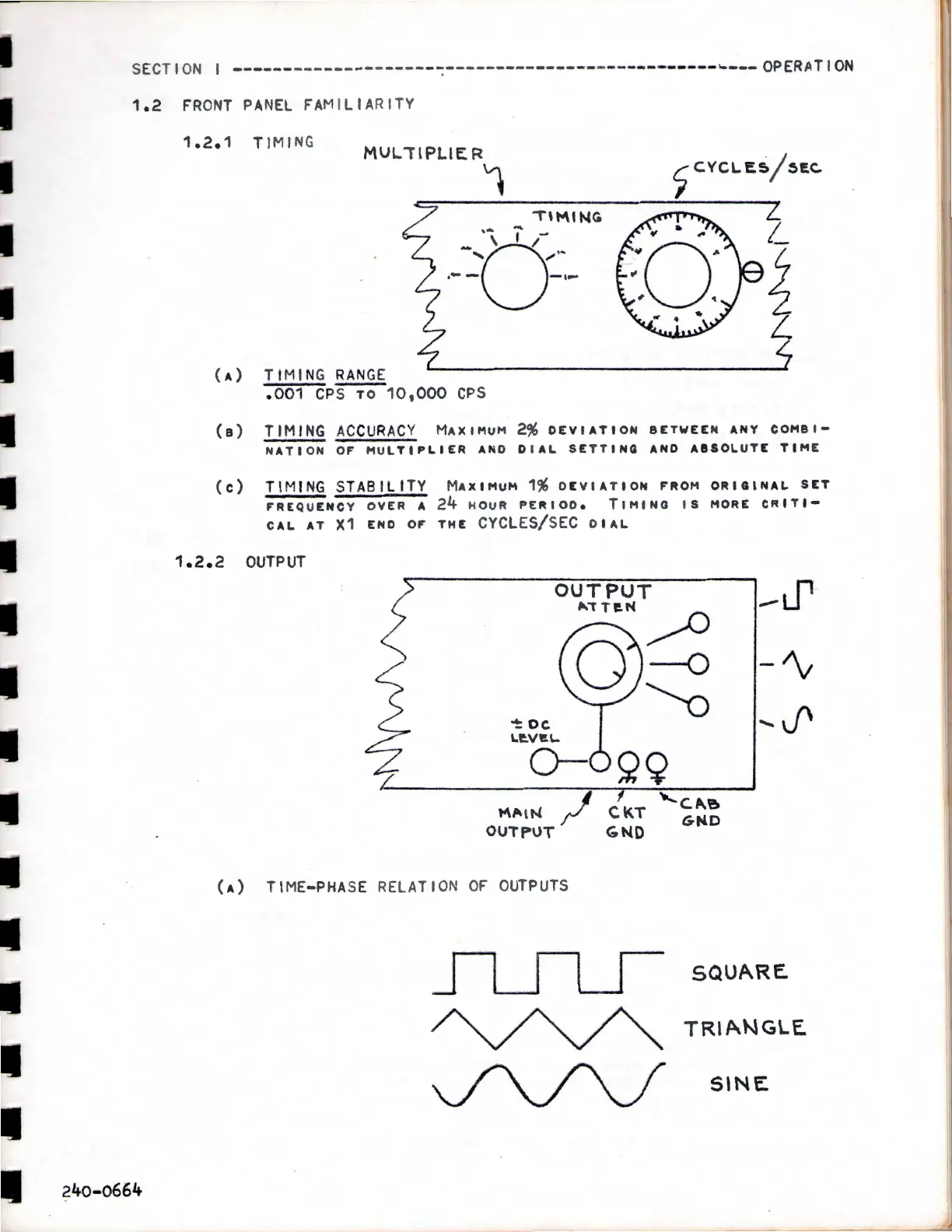

FRONT PANEL FAM IL IARITY
1.2.1 TlMING
MUL ilPLlER
'1
"TIMING
... ....
-o\ I/-
' ,,, ....
....... -- -, ...
(A) TIMING RANGE
.001 CPS TO 10,000 CPS
(a) TIMING AC CURAC Y MAXIMUM 2% OEVIATtoN BETWEEN ANY coMe1-
NATtON OF MULTIPLt£R ANO DIAL S£TTING AND ABSOLUTE TIME
(c) TIMING STABILITY MAXIMUM 1% DEVIATION FROM ORIGINAL SET
FREQUENCY OVER A 24 HOUR PERIOD. TIMING I S MORE CRITI-
CAL AT X1 ENO OF THE CYCLES/SEC OIAL
1. 2. 2 OUTPUT
-~
lo\A\t~ I C.KT "'"c."~
~ G~D
OUTPUT GND
(A) TIME-PHASE RELATION OF OUTPUTS
SQUARE.
TRl P\ NGLE.
SI NE
