Exmark Turf tracer HP Parts Manual

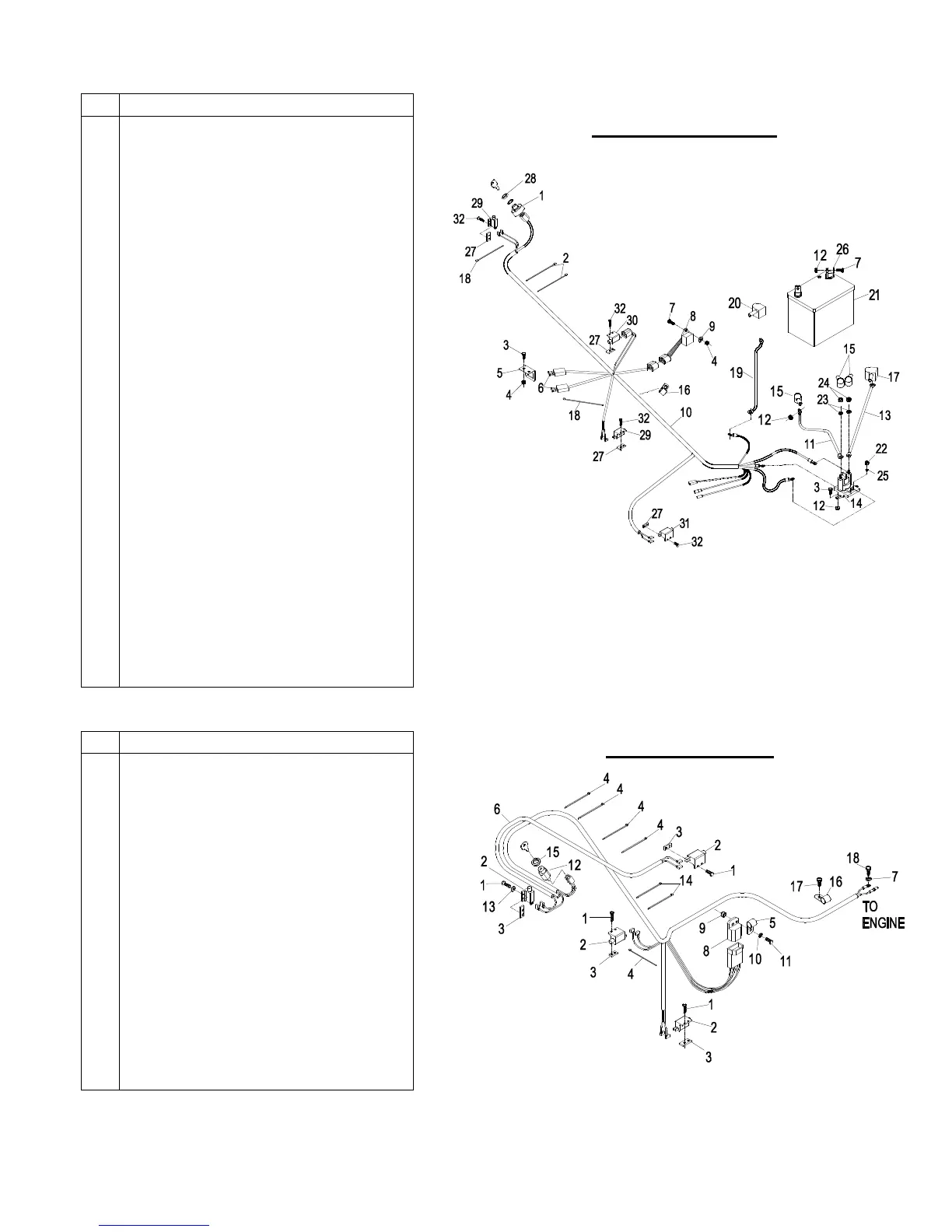

ELECTRICAL GROUP
15
Item Part No. Description
Qty.
1 1-543070 Switch, Ignition
................................
1
1-603511 Key, Ignition
................................
1
103-2106 Key, Exmark Logo
................................
1
2 1-303335 Tie, Plastic Large
................................
2
3 321-3 Screw, HH 1/4-20 x 5/8
................................
2
4 3296-42 Nut, Nyloc 1/4 20
................................
3
5 1-323442-01 Bracket, Fuse
................................
1
6 1-816001 Fuse, 20A
................................
2
7 321-4 Screw, HH 1/4-20 x 3/4
................................
5
8 1-613198 Module................................
...............................
1
9 3256-22 Washer, 1/4 SAE
................................
1
10l 103-2006 Harness, Wiring
................................
1
11 1-633306 Cable, Solenoid/Starter +
................................
1
12 32128-33 Nut, Whizlock 1/4-20
................................
5
13 1-603490 Cable, Battery +
................................
1
14 1-513075 Switch, 12V Solenoid
................................
1
15 1-543393 Insulator, Solenoid +
................................
3
16 1-603727 Clip, Loom
................................
1
17 1-543391 Insulator, Battery +
................................
1
18 1-303287 Tie, Cable
................................
2
19 1-413540 Battery Cable
................................
1
20 1-543390 Insulator, Battery -
................................
1
21 103-0293 Battery, 12V MNFLD
................................
1
22 3219-14 Nut, Hex #10-32
................................
2
23 3253-4 Washer, Lock 5/16
................................
2
24 3220-2 Nut, Jam 5/16-24
................................
2
25 3253-17 Washer, Lock 3/16
................................
2
26 3256-2 Washer, 1/4 Std
................................
2
27 1-633181 Plate, Tapped
................................
4
28 103-0498 Nut, Ignition Switch
................................
1
29 1-513051 Switch, N.O.
................................
2
30 1-633111 Switch N.O / N.C.
................................
1
31 1-513152 Switch, N.C.
................................
1
32 3290-500 Screw, PPH #10-24 x 5/8
................................
8
l Use dielectric grease on all electrical connectors.
Item Part No. Description Qty.
1 3290-500 Screw, HH #10-24 x 5/8
................................
8
2 1-513051 Switch, N.O.
................................
4
3 1-633181 Plate, Tapped
................................
4
4 1-303287 Tie, Cable 5 1/2
................................
5
5 1-323229 Clip, Loom 3/8
................................
1
6 103-2005 Harness, Wiring
................................
1
7 1-805004 Washer, Lock 1/4 Heavy
................................
1
8 1-323430 Module, Interlock
................................
1
9 3296-42 Nut, Nyloc 1/4-20
................................
1
10 3256-22 Washer, 1/4 SAE
................................
1
11 321-4 Screw, HH 1/4-20 x 3/4
................................
1
12 1-403121 Switch, On/Off
................................
1
1-603511 Key, Ignition
................................
1
103-2106 Key, Exmark Logo
................................
1
13 3256-14 Washer, #10 Std
................................
1
14 1-303335 Tie, Cable 7 5/16
................................
2
15 103-0498 Nut, Ignition Switch
................................
1
16 1-413510 Clip, Loom 1/2
................................
1
17 33114-016 Screw, HH M8-1.25 x 16mm
..............................
1
18 33113-016 Screw, HH M6-1.00 x 16mm
..............................
1
l Use dielectric grease on all electrical connectors.
ELECTRIC START
MANUAL START
