EXO CABLE MAINTENANCE CHECK
The following is an easy check for testing your EXO cables. This can prevent damage to the SONDES wet-mate connector
should a cable have an internal short. CHECK PIN 3 TO ALL PINS USING THE FEMALE SIDE AS SHOWN BELOW. THERE
SHOULD BE NO READINGS! MAKE SURE THE CABLE IS FULLY DISCONNECTED AT BOTH ENDS.
NO PINS SHOULD HAVE READINGS TO EACH OTHER [SEE PICTURE 1 BELOW!] PICTURE 2 SHOWS LEAKAGE BETWEEN
PINS.
Tools need:
- Digital Volt Ohm Meter

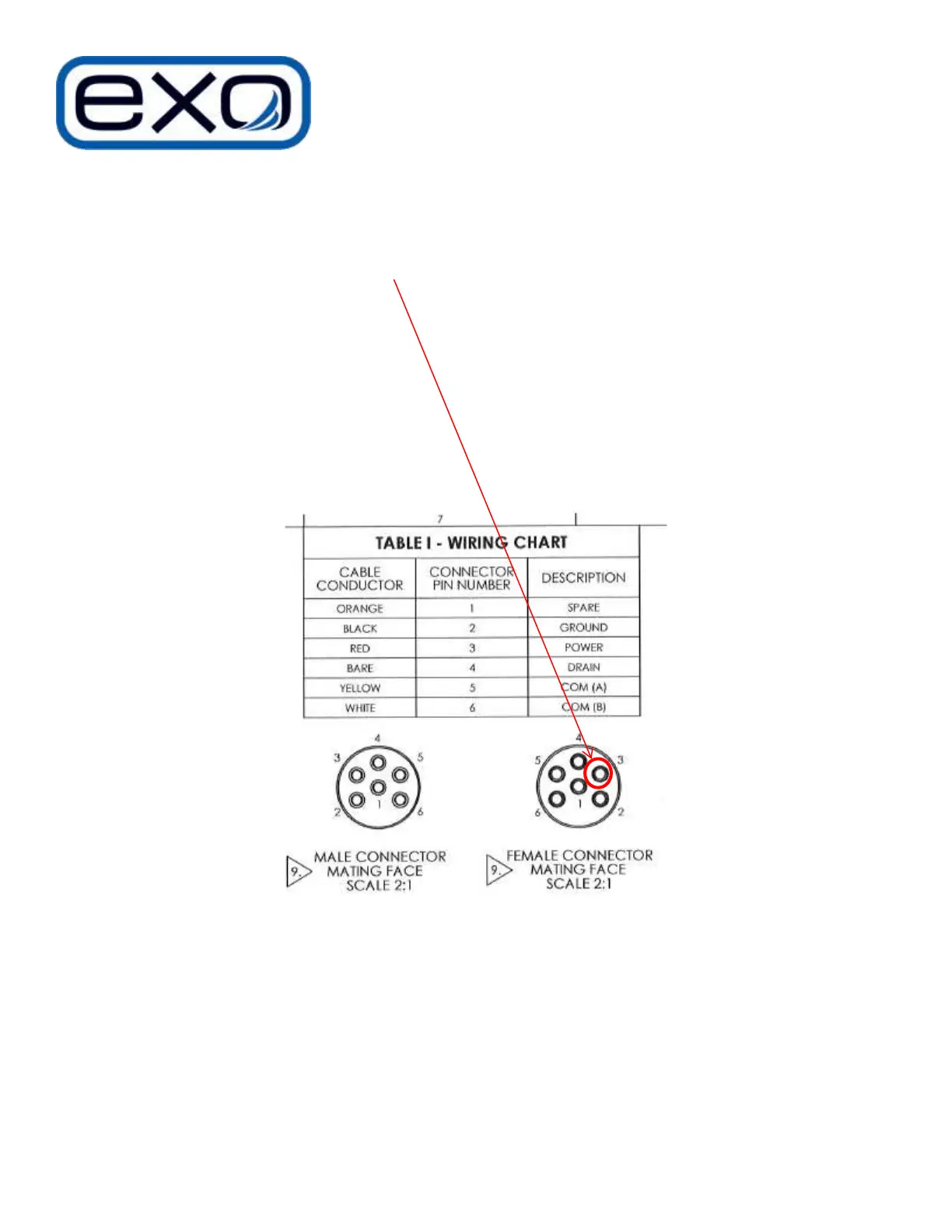

EXO CABLE CONNECTOR PIN OUT
