Read all information included on page 1 before beginning operation or installation.
Winch Installation Instructions
• Locate winch post on boat lift.
• Attach winch to post using boat lift manufacturer supplied hardware and instructions.
o Some lifts may require a secondary mounting bracket to be installed first, consult instructions for your
specific lift prior to installation.
o The winch back plate includes a variety of hole patterns to accommodate different brands. The winch
must fasten in at least two places using the highest holes available.
o If lift hardware is not supplied or replacement hardware is needed, use grade 8 or equivalent 1/2”
bolts, with oversized fender washers on both sides, lock washers, and nylock nuts.

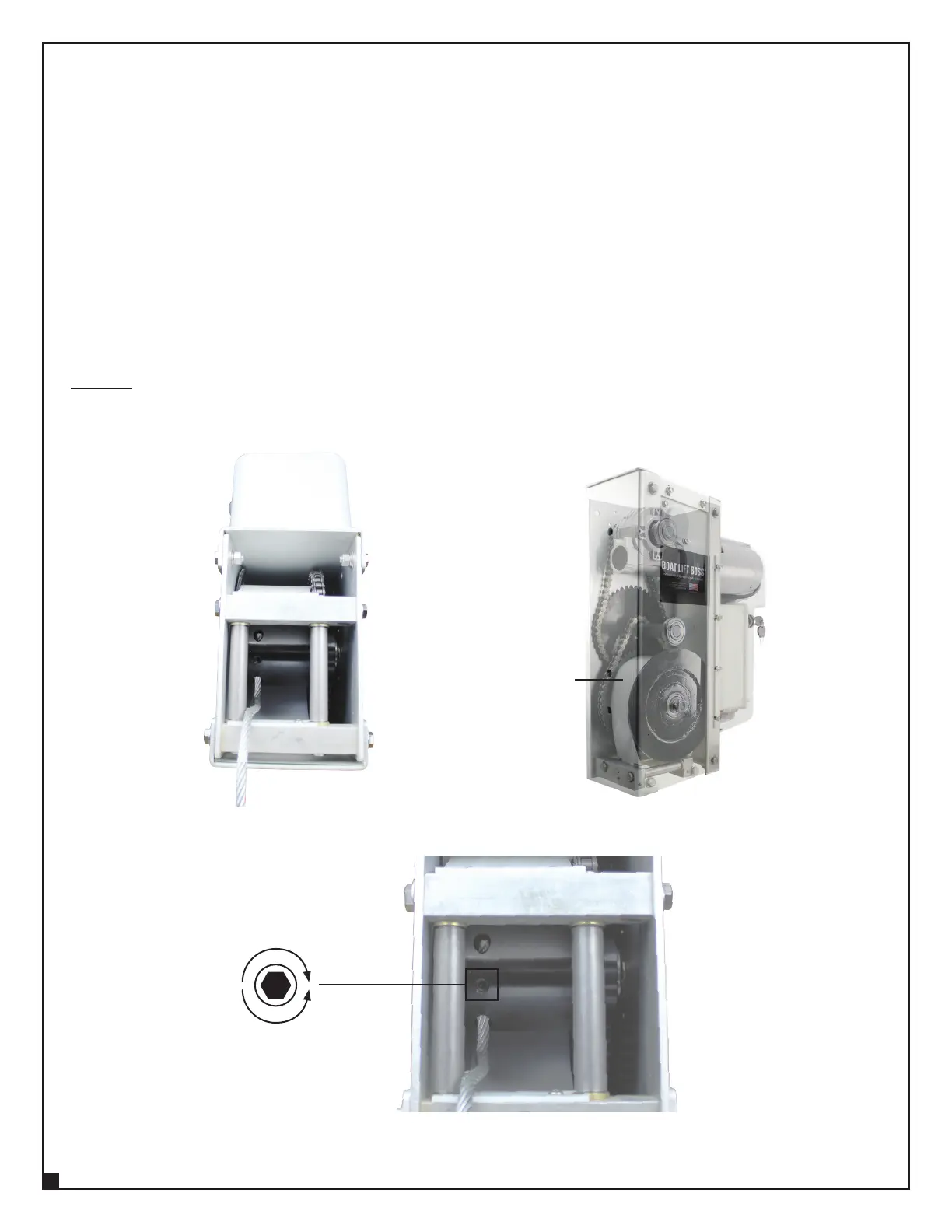

Cable Installation Instructions (5K)
DO NOT remove the plastic guard as it assists in guiding the cable.
• Rotate drum until cable access hole is visible
• Insert cable in to bottom hole of the winch drum, do not let cable fully extend through the other end of the
opening.
• Holding cable in position, operate winch down until the set screw is visible, and tighten set screw
Tighten
Front Cover
Back Plate
Loosen
Plastic
Guard
