2.2. INSTALL SUPPORT LEGS AND FEET, THEN ADJUST PLATFORM HEIGHT
2.2.1. Support legs, plugs, and feet come in pairs. Support legs will come in lengths sufficient for
the heights at specific locations.
2.2.2. Loosen all set screws in the platform corner pockets.
2.2.2.1 Set screws on the outside of the platform are for the platform support legs.
2.2.2.2. Set screws on the inside of the platform are for the handrail posts.
2.2.3. Tip the platform on its side, then slide the support legs into the four platform corner

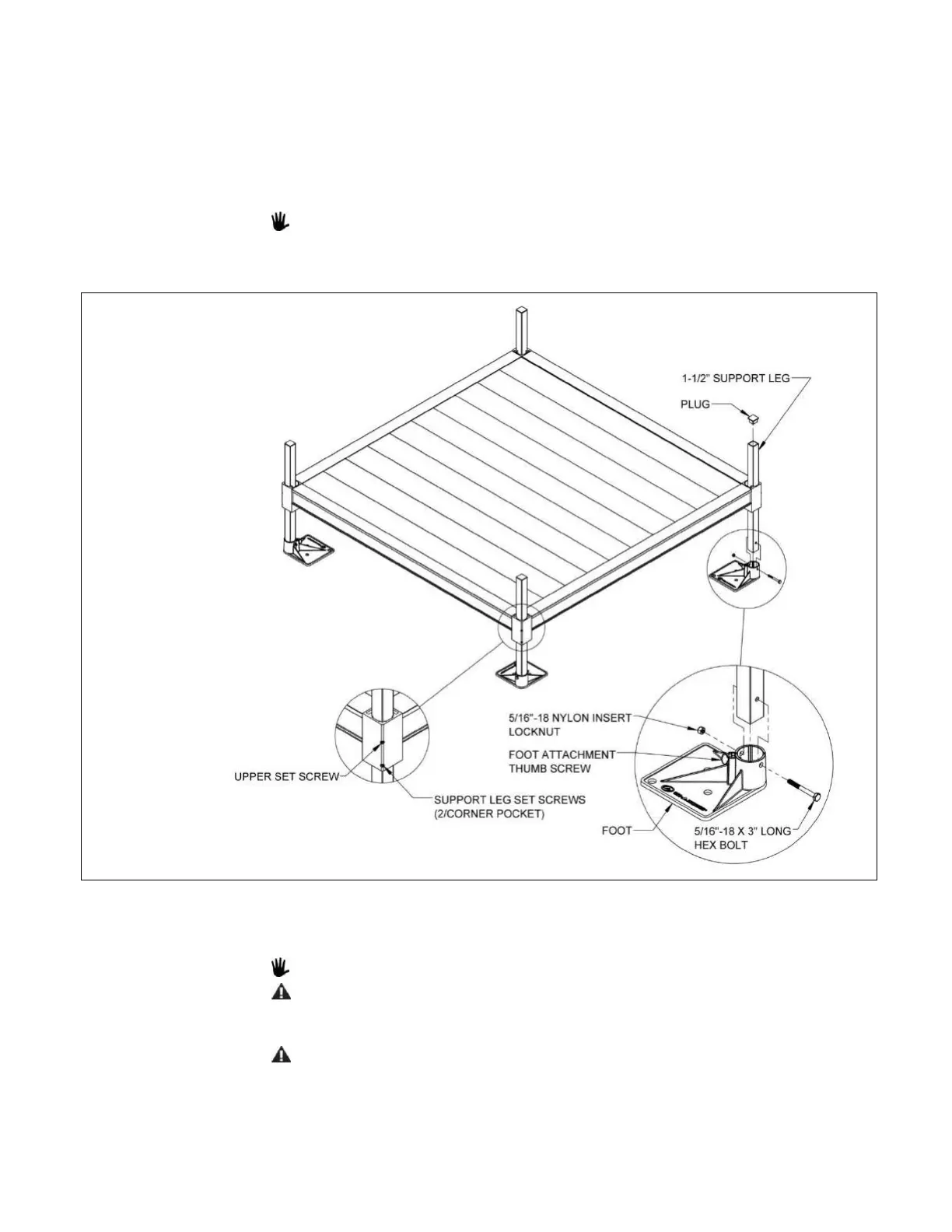

pockets. Adjust the support legs to the approximate platform height needed (FIG. 2.4).
The platform support legs must extend at least 4” above the walking surface (or
corner pocket) to reach above the lowermost hole in the 2” x 2” angle post which
will be installed in a later step.
2.2.4. Use supplied 3/16″ Allen wrench to tighten the upper (see FIG. 2.4) of the two set screws in
the corner pocket, snug fit just enough to hold the support legs in place but do not over
tighten (second set screw will be tightened after final height adjustments).
Platforms configured as a turn back platform (FIG. 2.3) will have six legs to adjust.
Do not attempt to walk on the platform until all support leg set screws have been
tightened securely.
2.2.5. Place the platform (with support legs attached) into the upright position.
Do not let the weight of the platform bear on the support legs while tipping the
platform upright.
