2.4. INSTALL CROSS BRACE
For added stability, platforms with walking surfaces over 36″ high require bracing. The TXB36 CROSS
BRACE is used for 5’ and 6’ platform sides and ramps. The TXB736 CROSS BRACE is used for 7’ platform
sides.
2.4.1. Use four braces per platform or six braces when two platforms are connected.
2.4.2. Separate ends of brace bands until they fit around the 1-1/2” support leg.
2.4.2.1. Install four bands on each leg with the part containing bolt holes at 90 degrees

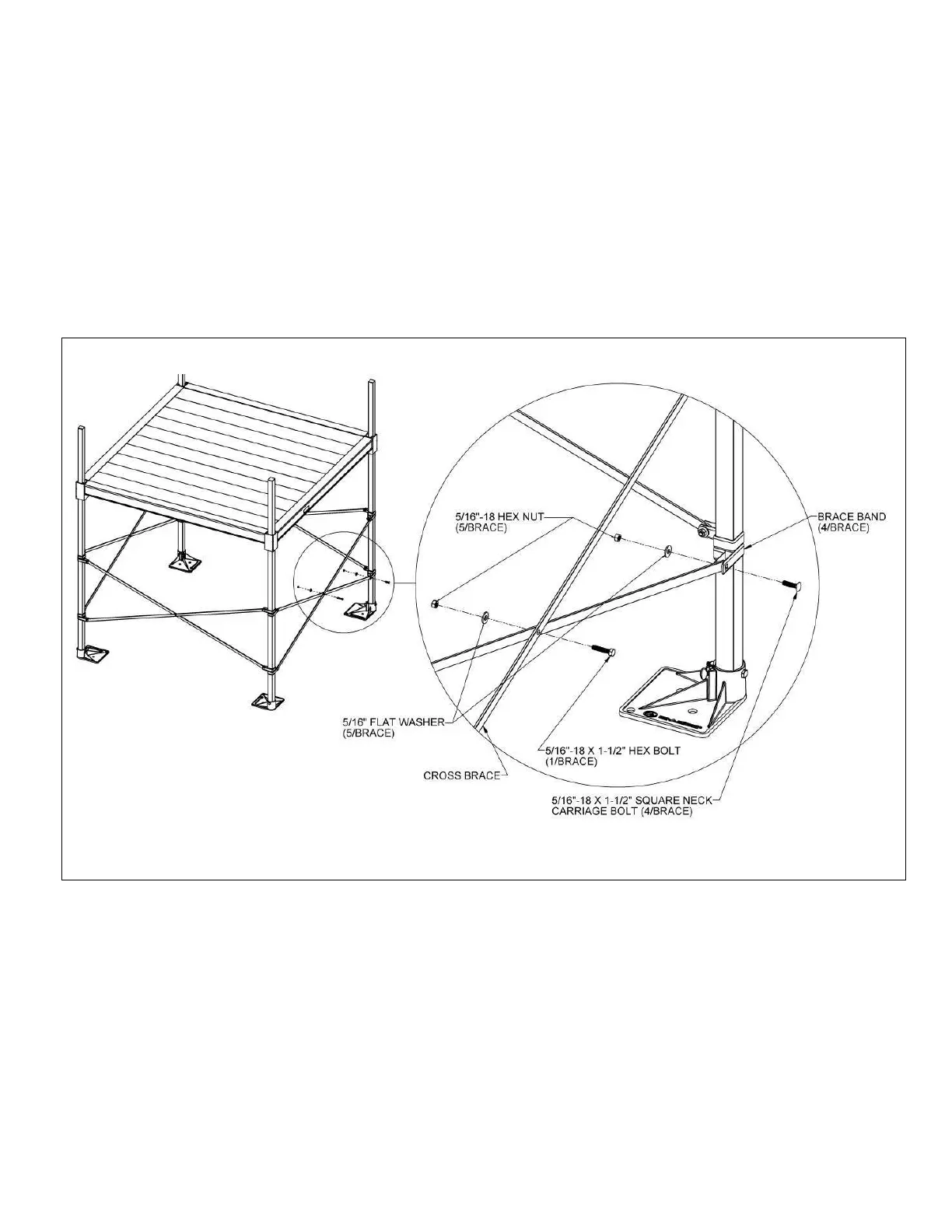

from each other and in line with the outer edge of the foot (FIG. 2.7).
2.4.3. The cross brace should be placed approximately in the middle of the platform legs on all
four sides with the top brace bands a minimum of two feet from the bottom brace bands.
2.4.4. Assemble the cross brace by installing the 5/16”-18 x 1-1/2” hex bolt, 5/16”-18 hex nut,
and 5/16” flat washer through the center hole in the braces. Tighten enough to hold the
brace together but still allow it to pivot around the bolt (FIG. 2.7).
2.4.5. If needed for the location, trim the ends of the cross brace to fit.
2.4.6. Drill one 11/32” or 3/8” dia. hole on center approximately 1/2” from both ends of each
brace.
2.4.7. Install the assembled CROSS BRACE between the legs of the brace bands using the four
5/16”-18 x 1-1/2” long square neck carriage bolts, 5/16”-18 hex nuts, and 5/16” washers
provided (FIG. 2.7).
2.4.8. Tighten all fasteners securely.
