EZ-ACCESS TITAN Assembly Manual

Page 18 of 77
3.3. ATTACH SUPPORT LEGS TO RAMPS
3.3.1. Install the support leg bracket, included in the TRRC (CONNECTOR – RAMP TO RAMP), on
the center studs of the center saddle bracket with the round hole on the upper stud and
the curved slot over the lower stud (FIG. 3.5).
3.3.2. Install the provided 5/16” flat washers and 5/16”-18 nylon insert locknuts onto the studs
but do not tighten fully until the bracket has been leveled (FIG. 3.5).
3.3.3. Level the support leg bracket using a bubble level or similar tool, then torque the 5/16”-
18 nylon insert locknuts to 20 ft.-lbs.
3.3.3.1. Level the Leg Bracket using a bubble level or similar tool, then torque the
two 5/16”-18 nylon insert locknuts to 20 ft.-lbs (FIG. 3.6).

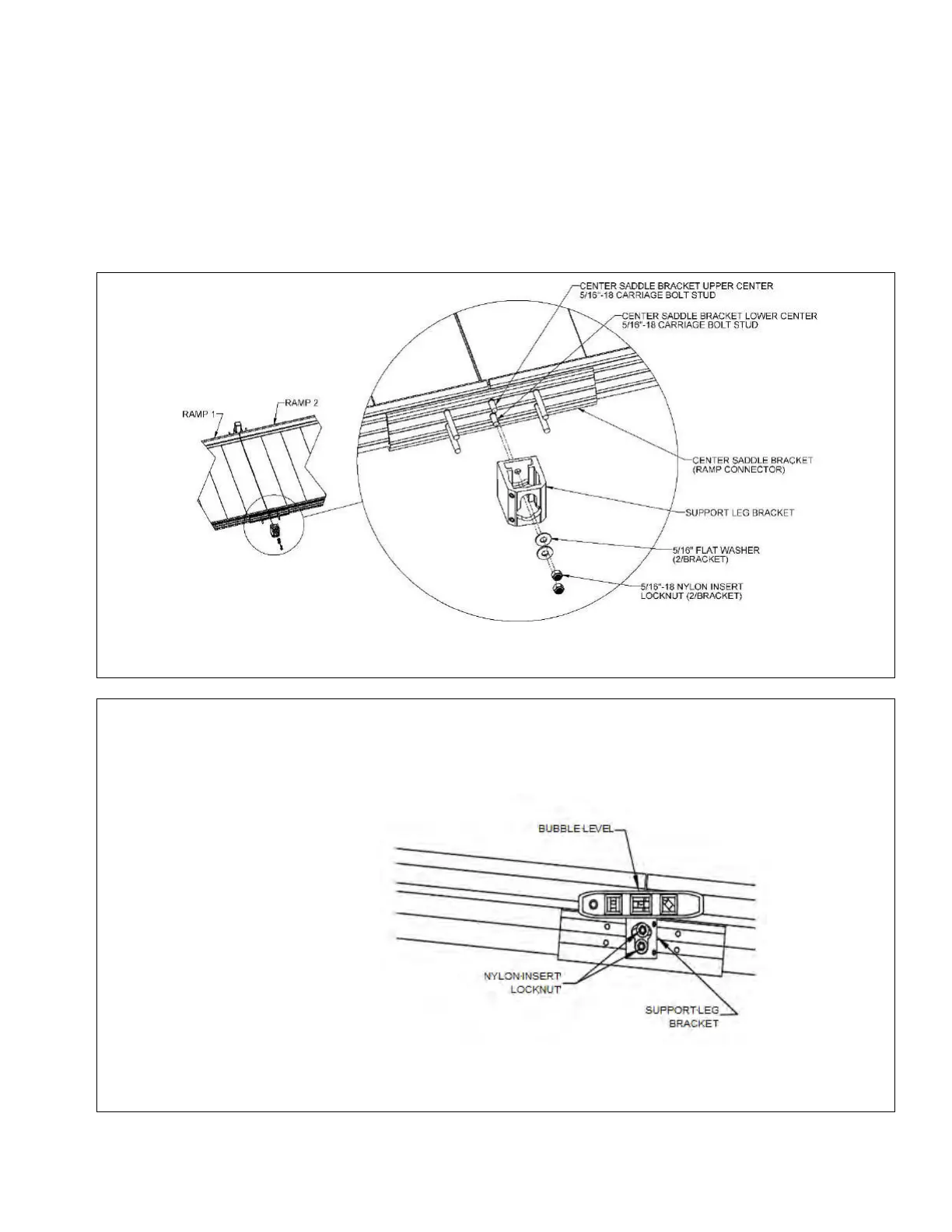

FIG. 3.5
FIG. 3.6
