4.4. RAMP HANDRAILS
4.4.1. Ramp handrails are specific to the ramp length and provided in pairs when ordered with
the ramp. The procedure for attaching ramp handrails is the same for the two-line rails
and picketed guards.
4.4.2. One ramp handrail is required on each side of the ramp (handrails of the same length are
interchangeable side-to-side).
4.4.3. In a multiple ramp run configuration, handrail connectors (included in the TRRC –
CONNECTOR RAMP TO RAMP) are used to join handrails together.
4.4.4. Refer to FIGs. 4.5 through 4.7 for the following steps:
4.4.4.1. Install an adjustable handrail bracket bottom (included with ramp handrail
hardware) in the upper holes of the frames facing the ramp walking surface.
Use the supplied 5/16”-18 x 2-1/4” socket head cap screws, 5/16”-18 nylon
insert locknuts, and 5/16” flat washers.
4.4.4.2. Tighten the 5/16″ nuts just enough to hold the adjustable handrail bracket
bottoms in in line with the frame posts, but still allow the bracket to pivot.
4.4.4.3. If a lower (child) ramp handrail (purchased separately) is being used, install
adjustable handrail bracket bottoms in the lower holes in the same manner.

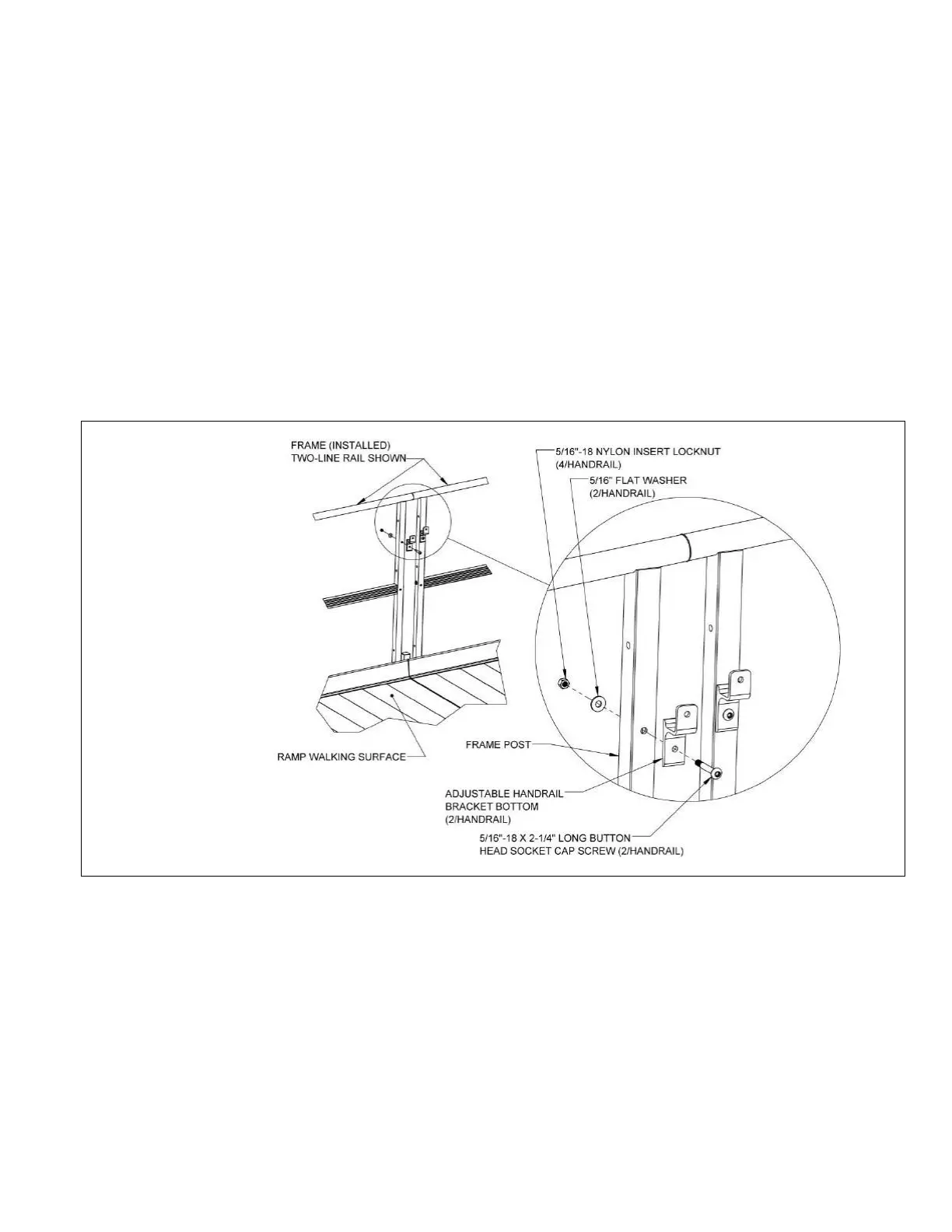

FIG. 4.5
