5.5. PICKETED GUARD CLOSURE
5.5.1. Picketed Guard Closures are specific to the platform size (5’, 6’, or 7’) and require the
ramp to be mounted to one side or the other of a platform. If the ramp is to be placed
anywhere other than the side of a platform, custom components will be needed. Consult
your sales representative for the required components.
5.5.2. Attach the Picketed Guard Closure to the 2” X 2” angle post.
5.5.2.1. Upper Rail: Use 5/16”-18 x 1” long hex bolts and 5/16” flat washers to attach
the upper rail.
5.5.2.2. Lower Rail: Use 5/16”-18 x 1” long hex bolt (do not use a flat washer at this

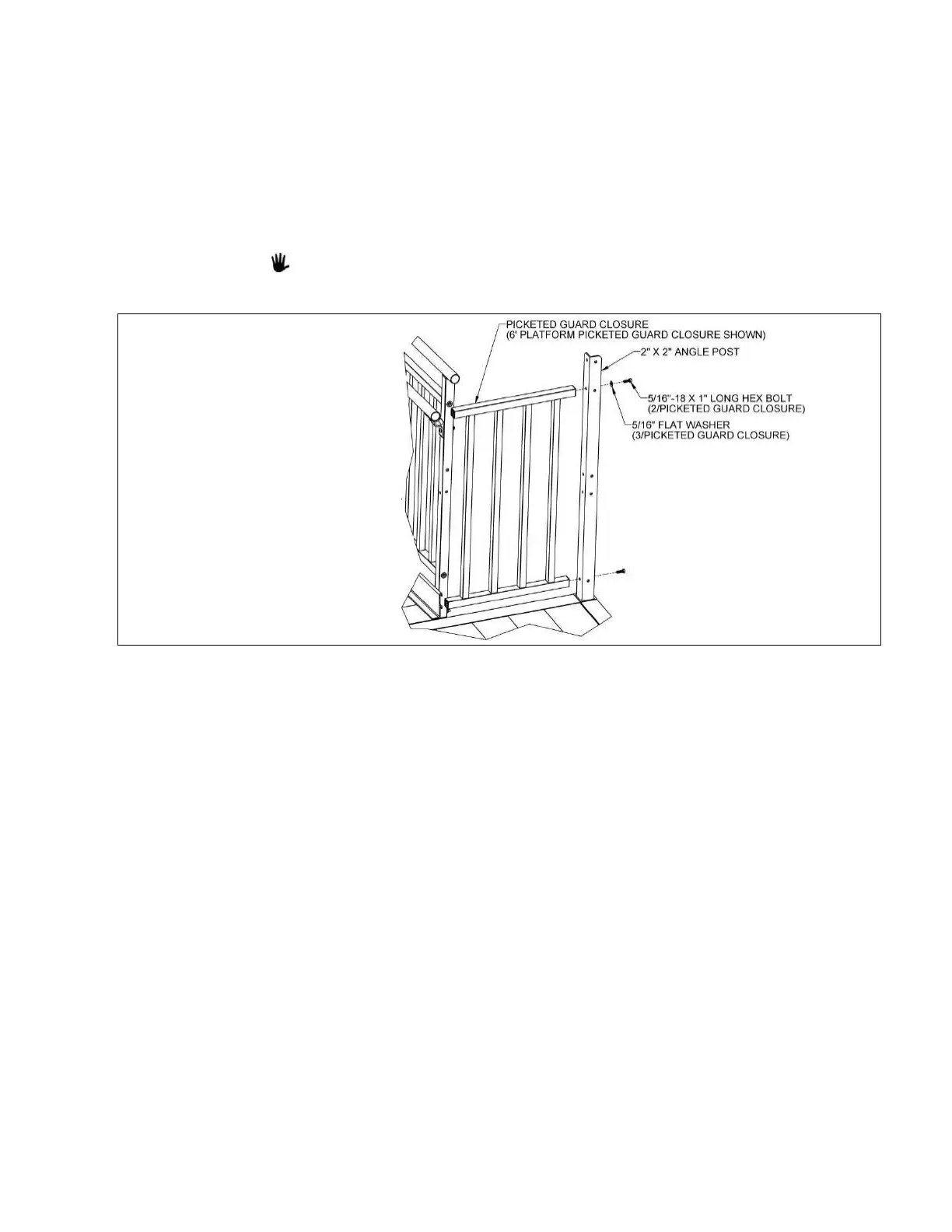

location) (FIG. 5.13).
Picketed Guard Closures are symmetric, so the “upper” or “lower” rail can be
installed on top or on bottom.
