Page
59
of
77
5.8.17.

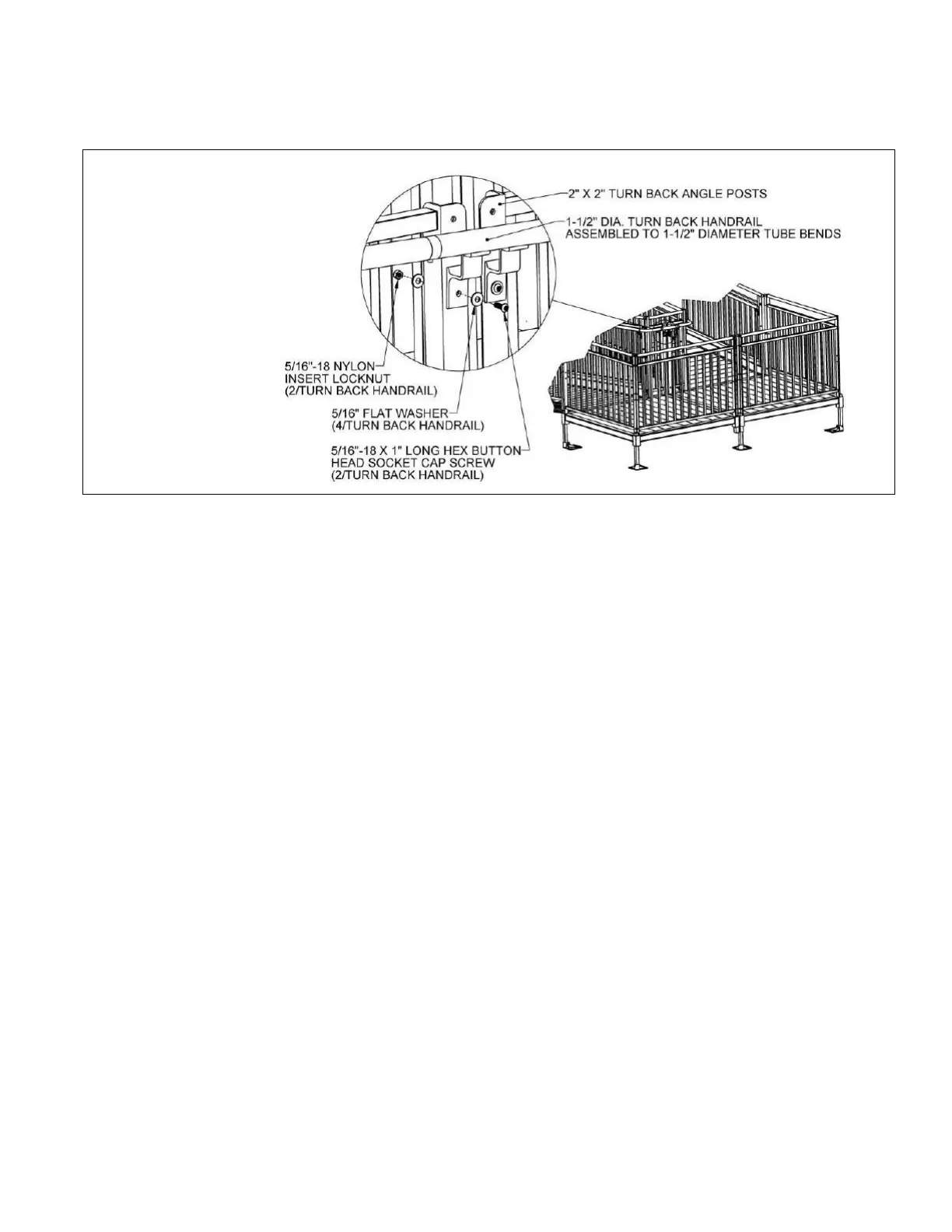

Attach the turn back han
drail to both 2” X 2
” turn back angle
post
s using
5/16”
-18 x 1
”
long button head s
ocket
cap screws, 5
/16”
-18 nylon in
sert locknuts, and
5/
16” flat
washers (FIG. 5.35).
5.8.18.
Tighten all ring joiner s
et screws fastene
rs securely.
FIG. 5.
35
58
60
