6. FINAL PLATFORM/RAMP STEPS AND CHECKS
6.1. SECURE RAMPS TO PLATFORMS
6.1.1. Once positioning of all ramps and platforms, and installation of all handrails, connectors,
and end loops are complete, you will need to secure ramps to platforms with Ramp End
Clips (included in PRHP - RAMP HANGER PAIR).
Use two Ramp End Clips at all locations where ramps meet platforms.

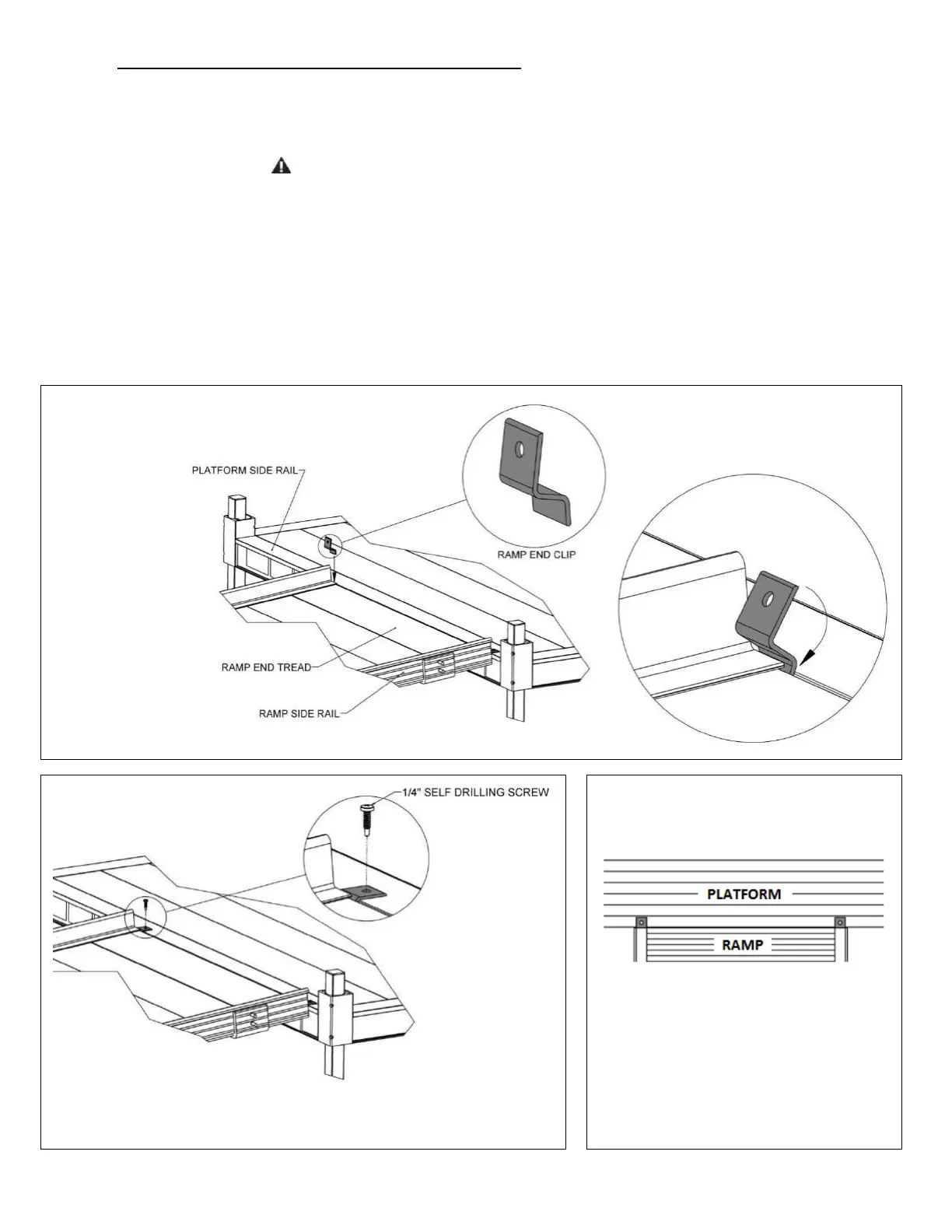

6.1.2. Position each Ramp End Clip with the hole pointing up and oriented as shown (FIG. 6.1),
then insert the short end of the Ramp End Clip into small gap between the ramp and the
platform in the area where the ramp side rail overlaps the ramp end tread.
6.1.3. Before the Ramp End Clip contacts the ramp side rail, rotate the Ramp End Clip so the
short end extends into the recess under the ramp end tread (FIG. 6.1).
6.1.4. Use the hole in the Ramp End Clip as a template to drill 1/8” pilot hole in the platform
side rail, then use the 1/4” x 1” long self-drilling screws to secure the Ramp End Clip to
the platform side rail (FIG. 6.2).
6.1.5. FIG. 6.3 shows the top view of the completed process.
FIG. 6.1
FIG. 6.2
FIG. 6.3
