EZ-ACCESS TITAN Assembly Manual

Page 69 of 77
6.3. INSTALL RAMP HANDRAIL END LOOPS

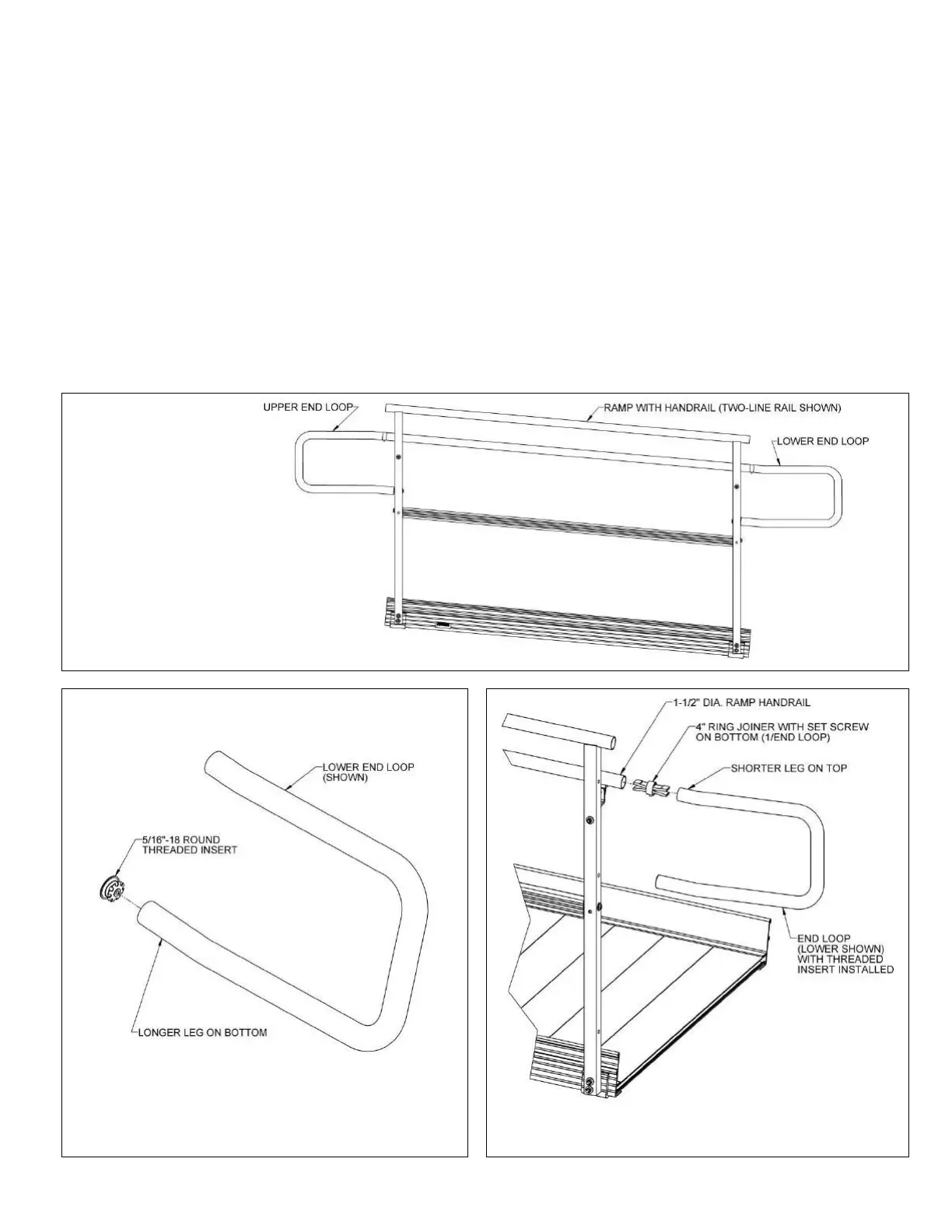

6.3.1. The TITAN system may include both upper and lower end loops (FIG. 6.5). Install a
Handrail End Loop in all locations where the handrail does not terminate in some other
manner (for example, a return to a building or guard), including both Starter Ramp
handrails. Upper and lower end loops are installed in the same manner. If the end loop
being installed does not fit correctly, you are most likely trying to install it on the wrong
end of the ramp or ramp run. Referencing FIG. 6.5, note how the cut ends of the lower
end loop angle upward, and the upper end loop cut ends angle downward.
6.3.1.1. The longer leg of the end loop is always the lower leg. Insert a 5/16”-18
round threaded insert into the lower leg. Use a rubber mallet if needed to
fully seat the insert into the loop (FIG. 6.6).
6.3.1.2. Install a 4” ring joiner in the end of the 1-1/2” diameter ramp handrail and
place the upper leg of the end loop over the other end of the ring joiner.
Orient the set screw in the ring joiner toward the underside of the handrail
and rotate the loop until it aligns with the post in the frame, then tighten
enough to hold the loop in place (FIG. 6.7).
FIG. 6.5
FIG. 6.6
FIG. 6.7
