Page 72 of 77
6.6. INSTALL FRAME TOP RAIL END PLUGS AND RAMP CORNER PROTECTORS

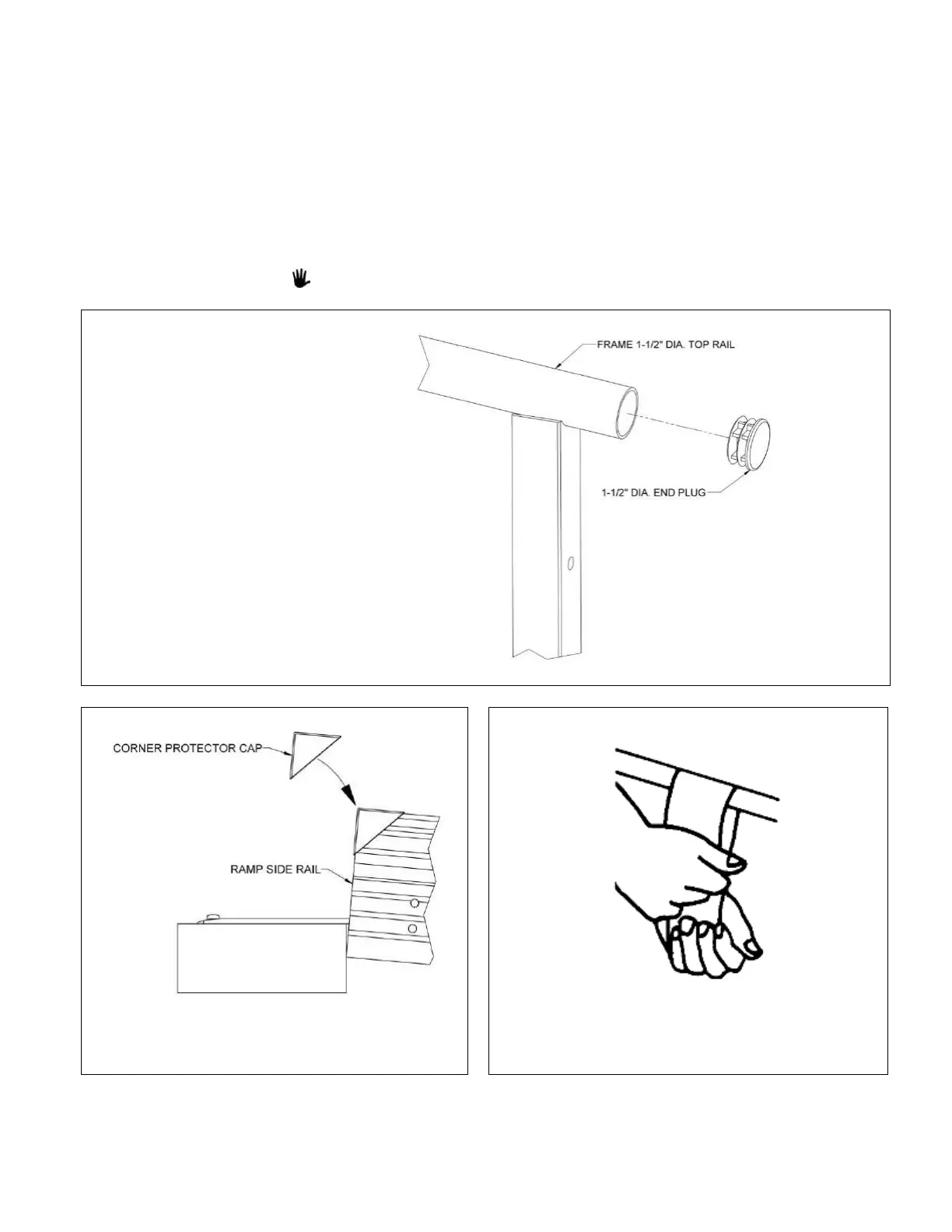

6.6.1. Use 1-1/2” plastic end plugs on all open ends of the frame top rails (FIG. 6.12). Push them
in by hand or use a rubber mallet. If necessary, use construction adhesive to bond the
plug into the rail.
6.6.2. Install protective caps over side rail corners by placing one cap on each side at both the
top and bottom of the ramp or ramp run (FIG. 6.13). If necessary, use construction
adhesive to bond the cap to the ramp side rail.
6.7. TOUCH-UP HANDRAILS
6.7.1. As needed, use sandpaper (180 grit or equivalent) for blending scratches on handrails.
Sand in direction of the grain as shown (FIG. 6.14).
Do not use on painted or powder coated surfaces.
