Ezviz C3WN User Manual

1
Operations

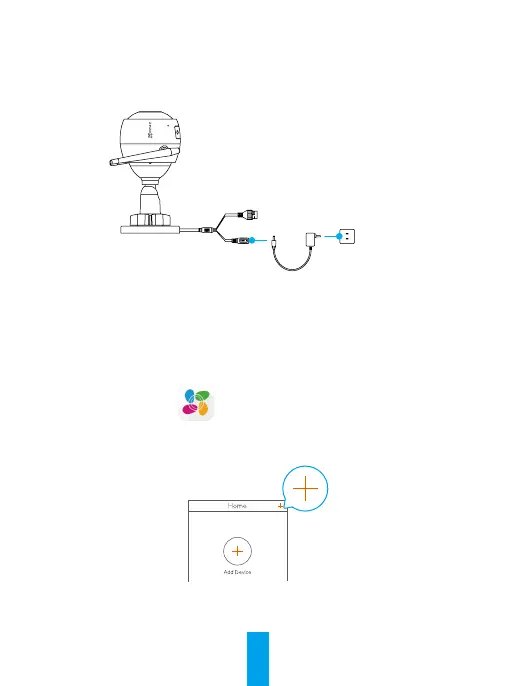

Step 1 Power-on
Connect the camera to power outlet with the power adapter, as shown below.
Power Adapter
Power Outlet
Step 2 Camera Setup
1. Create a user account
- Connect your mobile phone to Wi-Fi.
- Download and install the EZVIZ app by searching “EZVIZ” in App Store or Google Play
TM
.
- Launch the app and register an EZVIZ user account following the start-up wizard.
2. Add a camera to EZVIZ
- Log in the EZVIZ app.
- From the EZVIZ app Home screen, tap “+” on the upper-right hand corner to go to the
scan QR code interface.

Ezviz C3WN Specifications

General

Type	IP security camera
Certification	UL / FCC ID / CE / WEEE / CE-EMC / FCC / CE-R&TTE / REACH / RoHS / NOM / KCC
Placement supported	Outdoor
Connectivity technology	Wired & Wireless
Infrared (IR) cut-off filter	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Ethernet LAN (RJ-45) ports	1
Fixed focal length	4 mm
Maximum aperture number	2
Sensor type	CMOS
Optical sensor size	1/2.9 \
Minimum illumination	0 lx
Total megapixels	- MP
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264
Noise reduction technology	3D noise reduction
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	144 Mbit/s
Ethernet interface type	Fast Ethernet
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
DC output current	1 A
DC output voltage	12
Power source type	DC
Power consumption (max)	6 W
LED type	IR
Night vision distance	30 m
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	CE, REACH, RoHS, WEEE
Form factor	-
Mounting type	Ceiling/wall
Product color	Black, White
Protection features	Dust resistant, Water resistant
International Protection (IP) code	IP66

Weight and Dimensions

Width	72 mm
Height	150 mm
Weight	288 g
Cable length	1.5 m
Package depth	110 mm
Package width	252 mm
Package height	92 mm
