Ezviz C6C User Manual

5

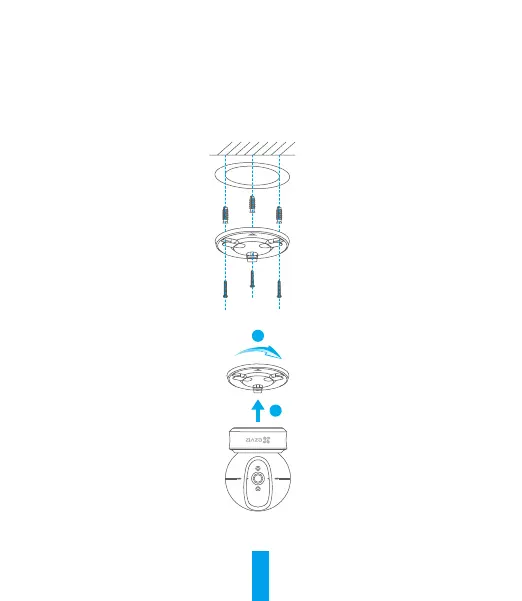

1. Place drill template onto the surface you have chosen to mount the camera.
2. (For cement wall/ceiling only) Drill screw holes according to the template and insert three expansion
screws.
3. Use three metal screws to fix the camera base according to the template.
4. Install the camera on the base, and turn it 15° to secure it.
1
2
5. Connect the power cable to the camera. If the camera was previously connected to the Wi-Fi
network, it will automatically connect to the same Wi-Fi network.

Ezviz C6C Specifications

General

Privacy protection	Yes
Security algorithms	64-bit WEP, 128-bit WEP, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Minimum illumination	- lx
Field of view (FOV) angle	360 °
Audio system	2-way
LED type	IR
Night vision distance	10 m
Built-in HDD	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Digital zoom	4 x
Number of lenses	1
Fixed focal length	4 mm
Form factor	Dome
Mounting type	Ceiling/Desk
Product color	White
Sensor type	CMOS
Optical sensor size	1/2.7 \
Total megapixels	- MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264
Image quality adjustment	Brightness, Contrast, Saturation
Supported graphics resolutions	1920 x 1080 (HD 1080)
Type	IP security camera
Certification	FCC/UL/IC/NOM/CE/WEEE/REACH
Placement supported	Indoor
Connectivity technology	Wireless
Frequency band	2.4 - 2.4835 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Supported network protocols	Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Operating temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	0 - 95 %
DC output voltage	5
Power source type	DC
Power consumption (max)	7 W
Lens mount interface	M12
Sustainability certificates	RoHS

Weight and Dimensions

Width	87.7 mm
Height	112.7 mm
Weight	256 g
Package width	106 mm
Package height	190 mm
