F40C4TMP PIONEER18 - Safety Attention; Portable Refrigerator Electrical Schematic

▲ Safety Attention
①Always ensure that the power supply voltage connected to the portable refrigerator is correct (the
portable refrigerator verification voltage parameter is on the parameter label).
②Do not pour liquid especially corrosive liquiddirectly into the portable refrigerator.
③To avoid danger, it is forbidden to transform the refrigerator privately.
④The refrigerator couldnot be exposed to rain.
2
_ _

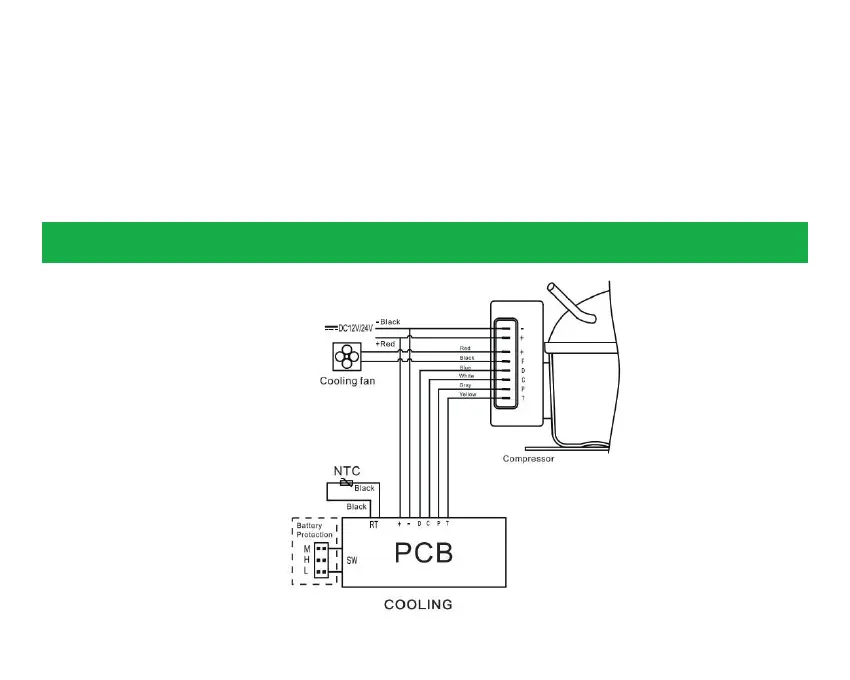

PORTABLE REFRIGERATOR ELECTRICAL SCHEMATIC
