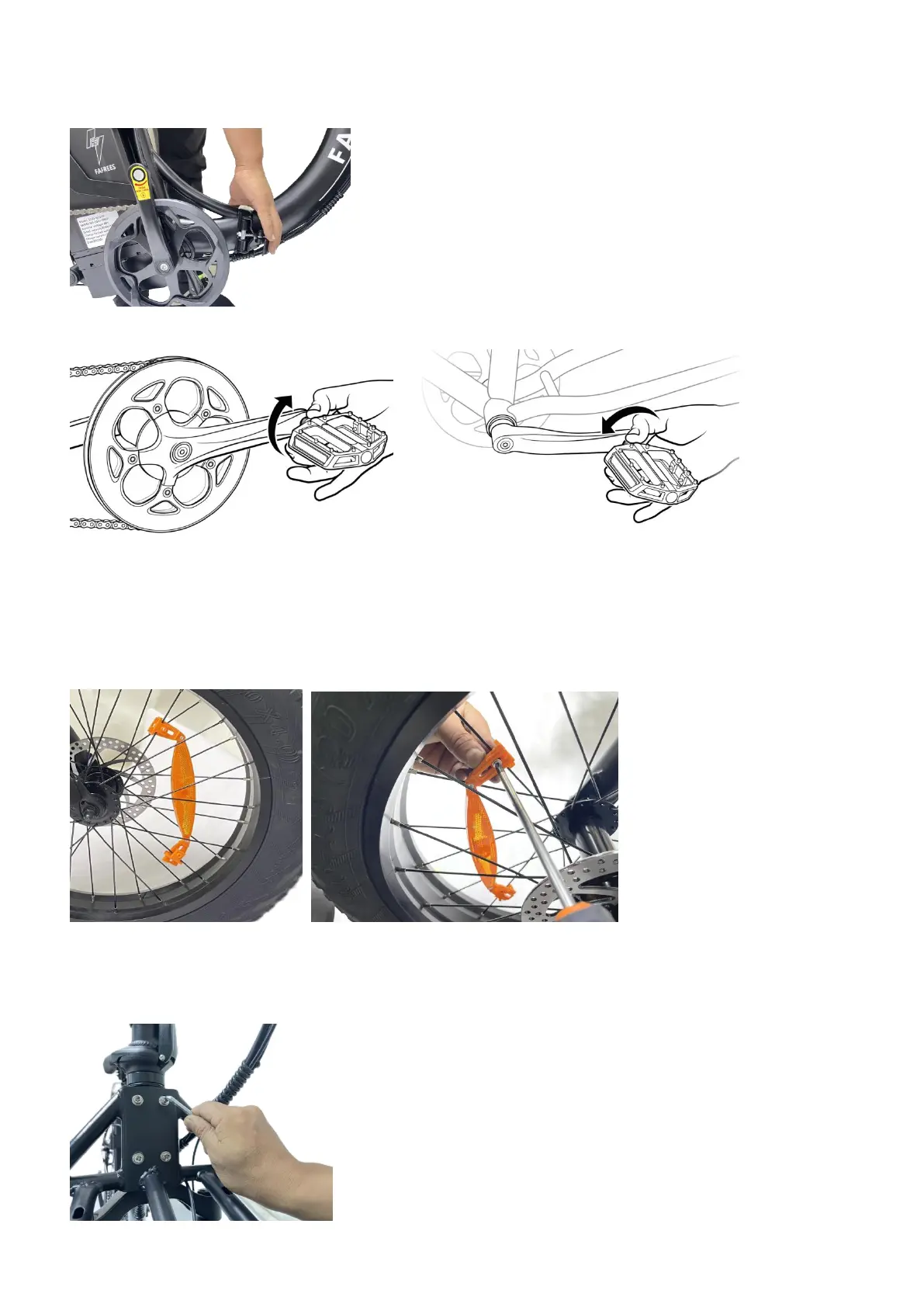

Step 3: Unfold the ebike frame
Unfold the frame and lock it with the latch. Open the kickstand to keep the e-bike upright on the ground.
Step 4: Pedal installation.
Note the markings on the pedal screws and on the crank arms. Stamp with "L" is the left pedal, stamp
with "R" is the right pedal, the right pedal is installed on the side of the sprocket.
NOTE: The right pedal (pedal with "R" sticker label) is threaded so that it is tightened by turning
clockwise. The left pedal (pedal with "L" sticker label) is reverse-threaded and tightens counterclockwise.
Step 5: Wheel reflector installation.
Put the reflector between the spokes. Align the reflector clip with the slot, insert the clip through the
spoke into the slot, and tighten the screw to secure the reflector clip.
Step 6: Front rack and front light installation.
A.Loosen the four fixing screw on the head tube. Put the front rack
to the proper position, tighten the screws with a hex key.
