11
5.5 PAS level selection
Press plus/minus button to switch PAS level of the electric bicycle, thus changing the motor
output power.
5.6 Battery level display
The battery level is shown as 5 bars. When the battery is full charged, all of the 5 bars
lighten up. When the battery is fully depleted, the bar will begin to flash, warning the user to
charge the battery as soon as possible.

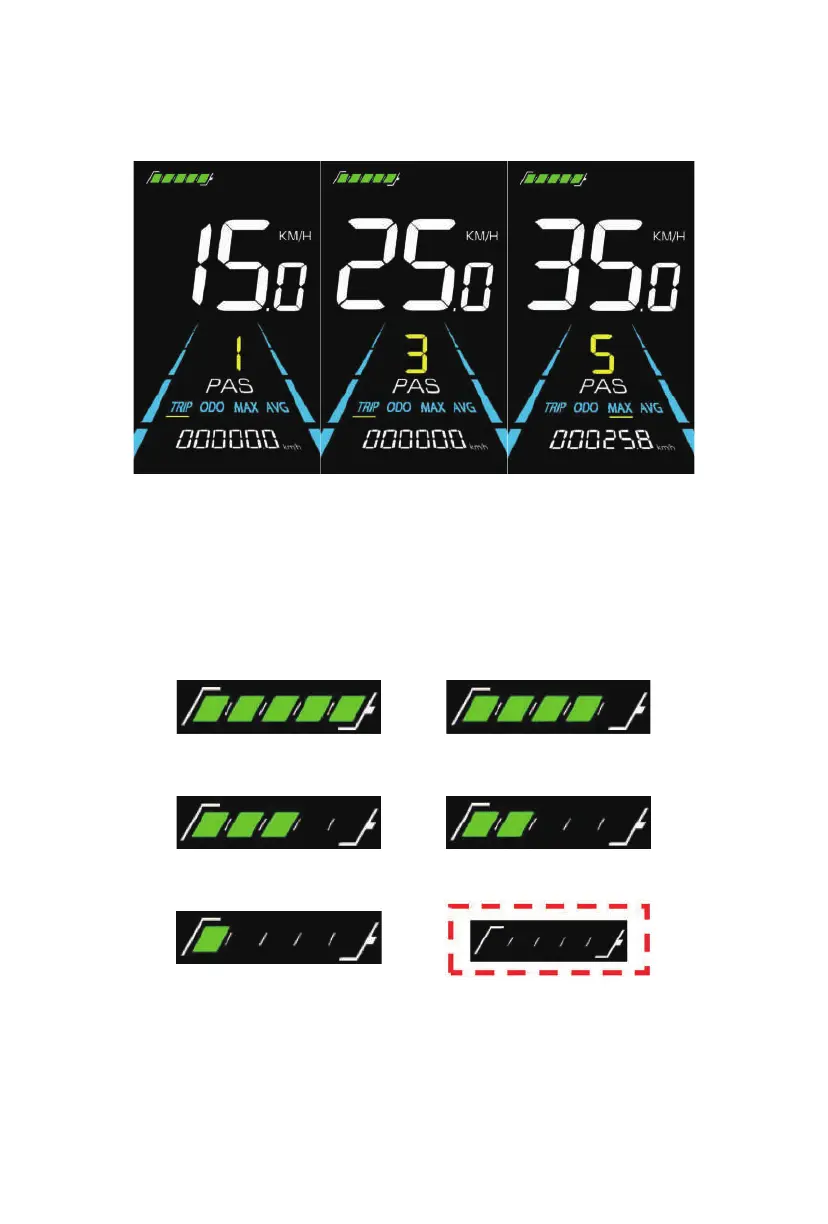

Figure 5-4 PAS level display interface
Figure 5-5 Battery Level Display Interface
Four bars powerFull power
Two bars powerThree bars power
Empty power flashingOne bar power
