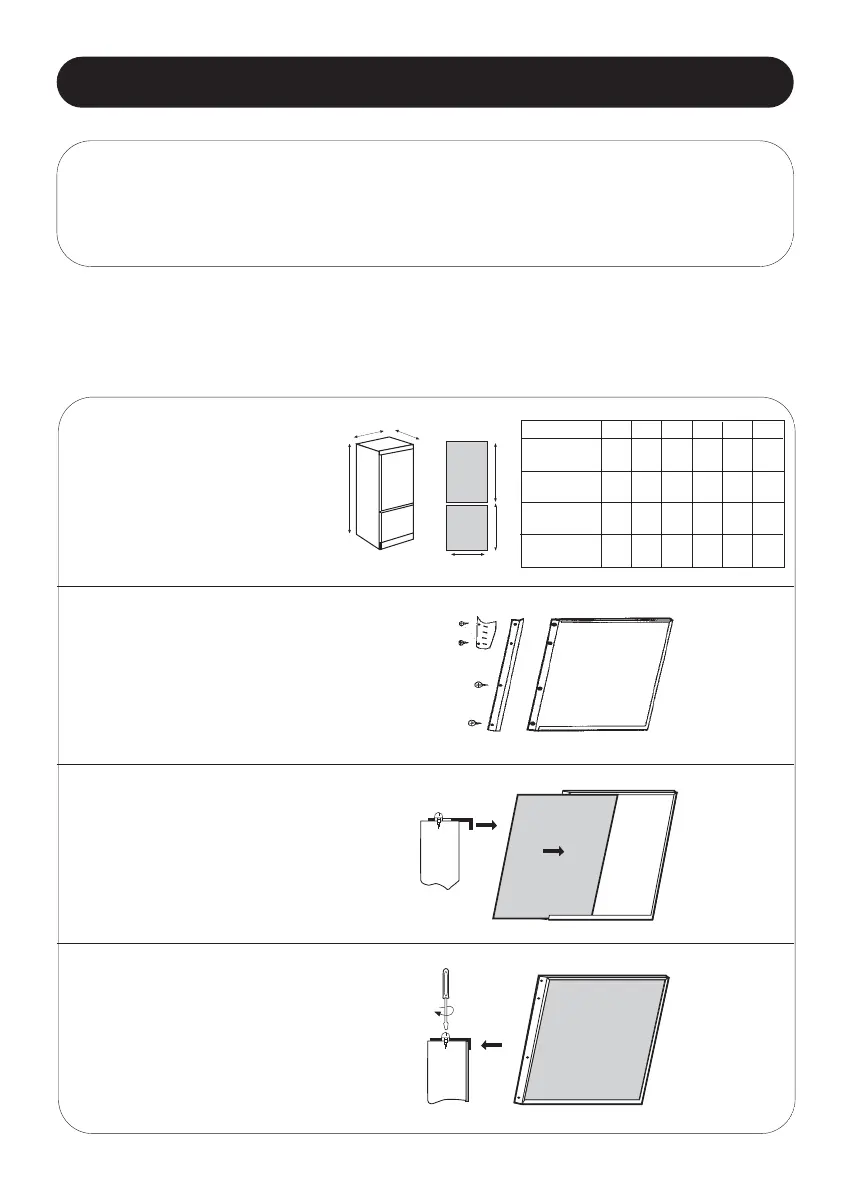

PANELLING (Panels models only)
Dimensions of the
refrigerator furniture
and door panels.
(Panel thickness less than 4 mm)
Remove the handle
and/or frame from
the left-hand side of
the door by
removing the
corresponding
screws.
Hold the rim of the
frame against the panel
and insert the frame
screws in that position.
Locate the frame and/or
the handle with their
screws.
1
2
3
4
Loosen the remaining
screws around the
door, removing the
frames as shown in
the diagram and
sliding the panel in.
For panelling you must to remove the doors. The instructions are contained in the
section on “Changing the direction of door opening”.
A
C
B
D
F
E
F
E
D
C
BA
1FFC-41
MPI
1FFC-47
MPI
1FFC-48
MPI
1FFC-49
MPI
1710 598 594 953 604 560
1860 598 594 1103 604 560
2010 598 594 1253 604 560
2010 598 594 1103 754 560
