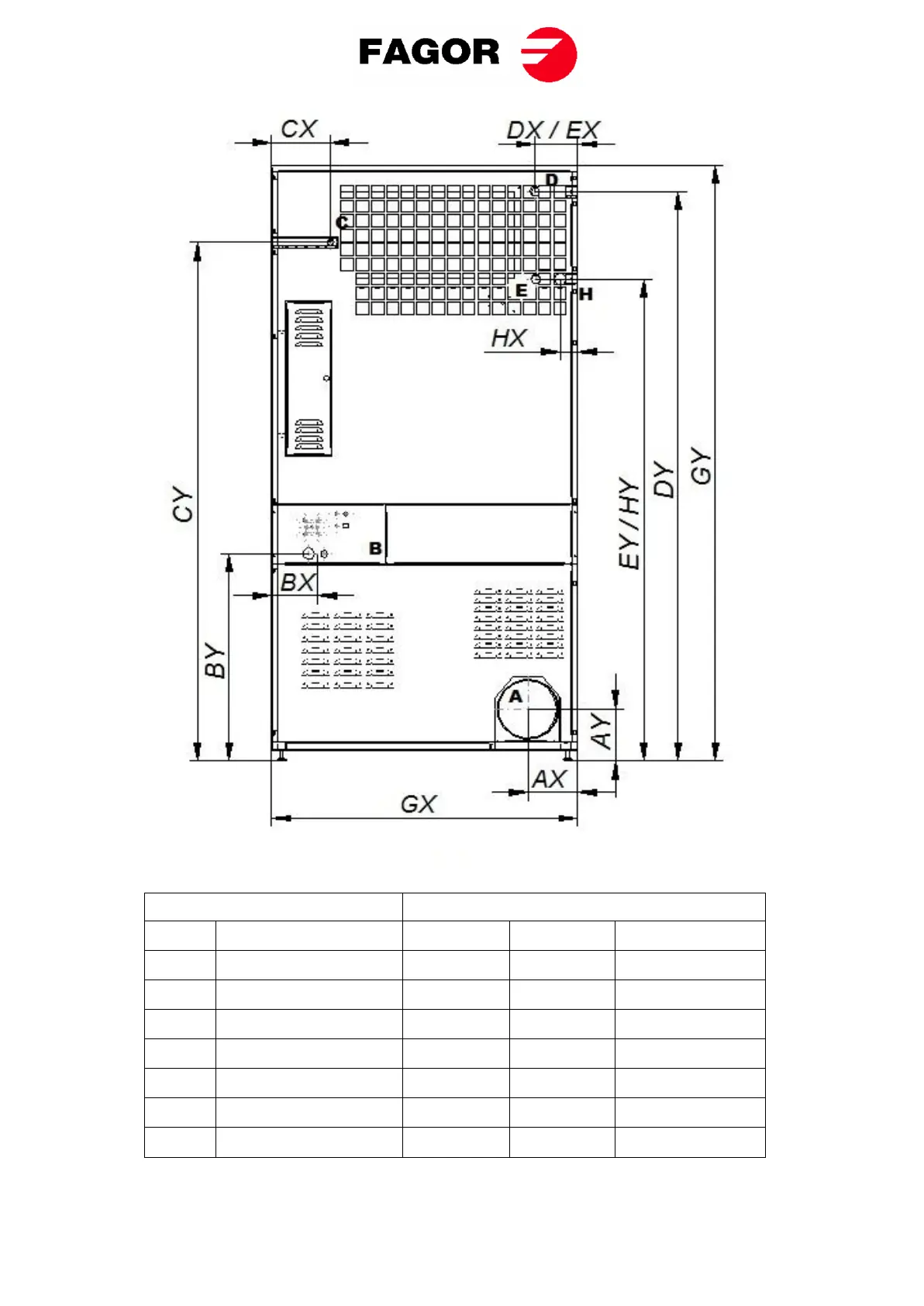

SR/SC-28-35
Punkt
Abmaß X
Abmaß Y
Anschluss
A
Dampfabfuhr
160
172
Ø200mm
B
Elektrische Zuleitung
148
685
Ø20mm
C
Gaseinlass
188
1715
BSP ½”
D
Dampfeinlass
134
1883
BSP 3/4”
E
Kondensatabfuhr
134
1594
BSP 3/4”
G
Allgemeines Abmaß
985
1970
-
H
Brandschutzventil
55
1594
BSP ¾ “
