2.2. Overview and dimensions

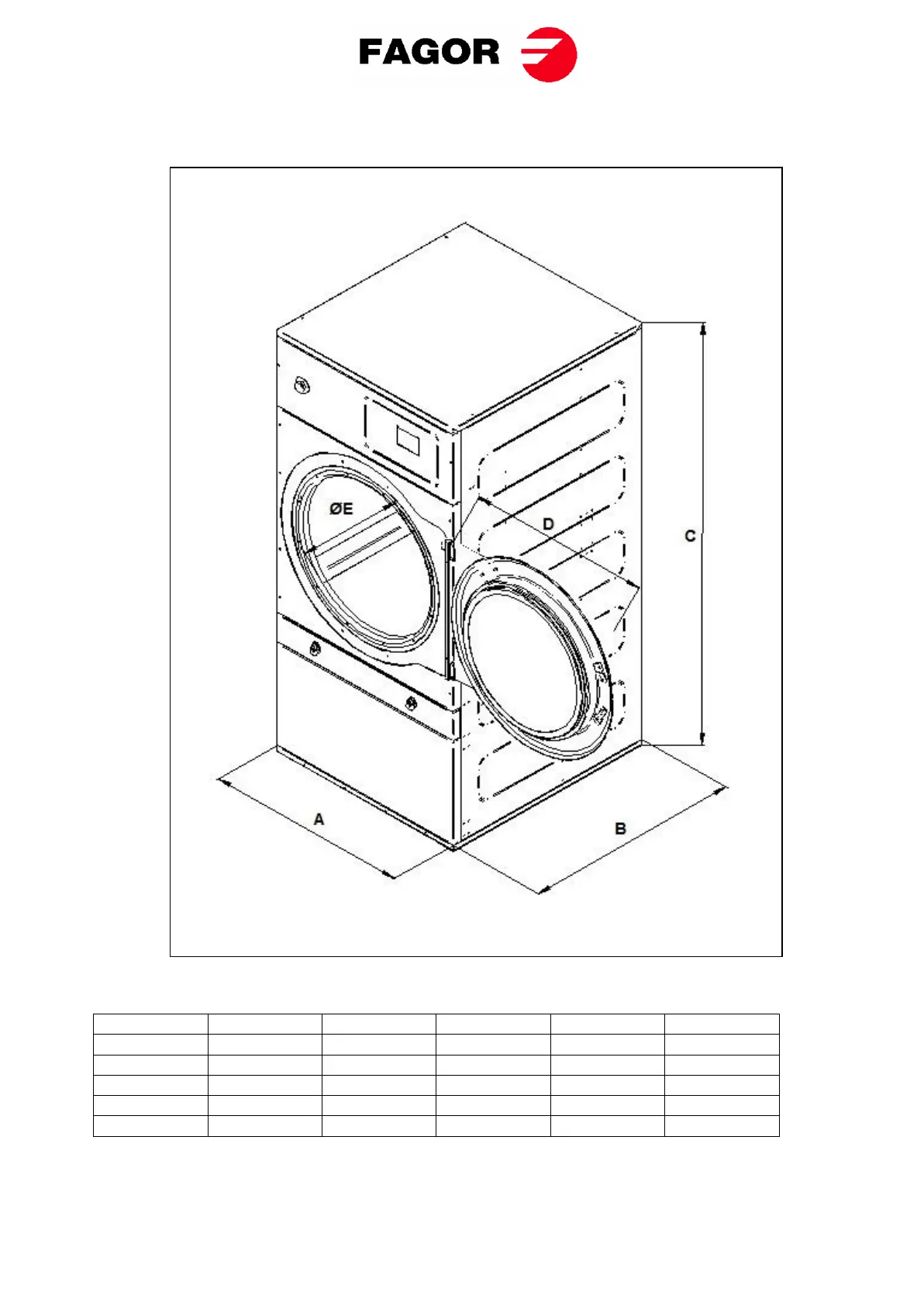

GENERAL DIMENSIONS
MODELO
SR/SC-11
SR/SC-16
SR/SC-23
SR/SC-28
SR/SC-35
A
785
785
890
985
985
B
840
1010
1245
1054
1210
C
1700
1700
1817
1946
1946
D
712
712
712
1050
1050
E
574
574
574
802
802
