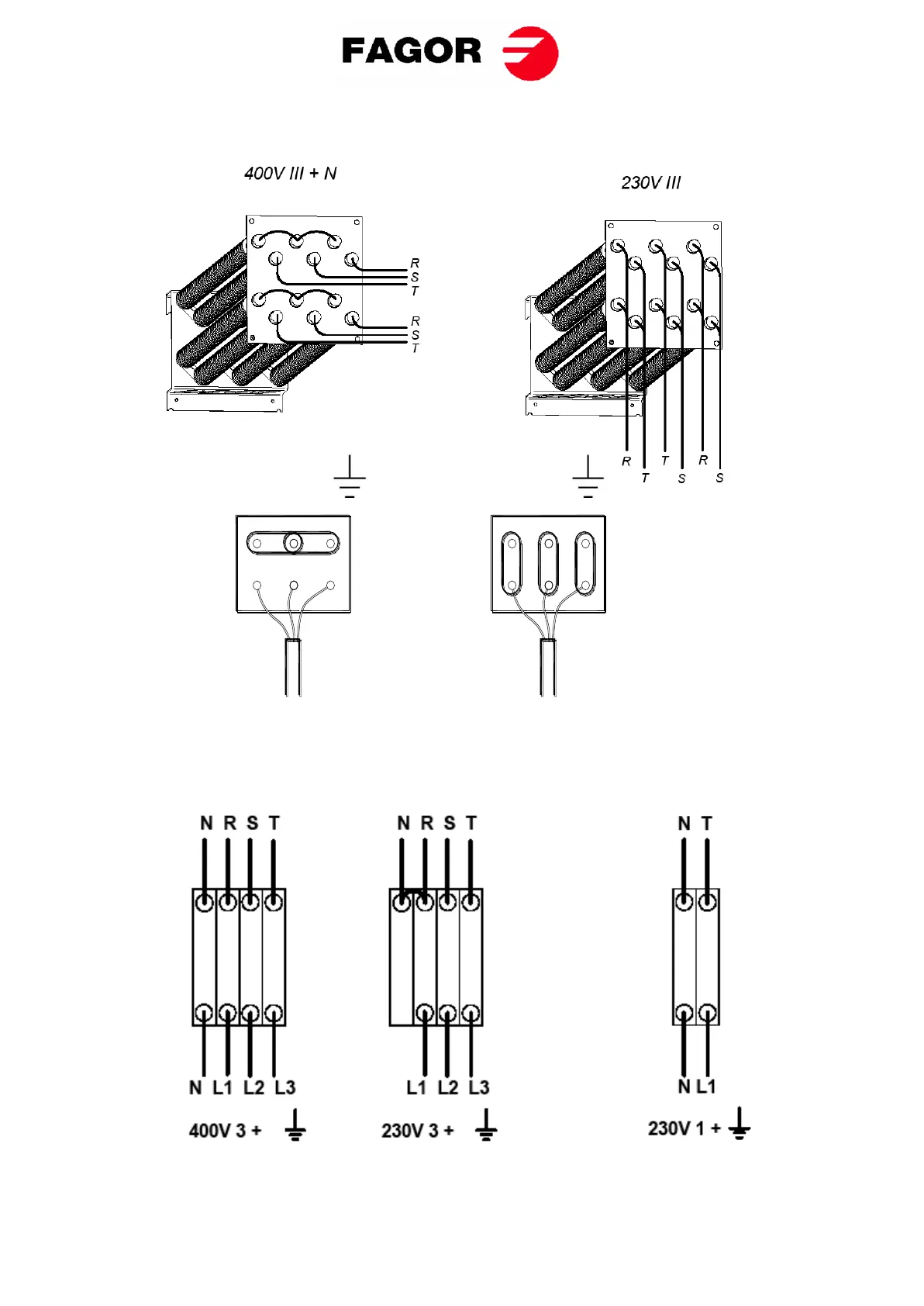

The electrical battery of the SR/SC-35 has 3 resistor modules. The figures are intended to provide a
diagram of the connections and are not a true representation of the same.
Fan motor terminal box. FOR ALL ALL MODELS.
400V 3 + 230V 3 +
Input terminals, electrical mains connection.
MACHINE
MAINS
U
WU V
V W
