5 MACHINE INSTALLATION.
5.1 Machine measurements.

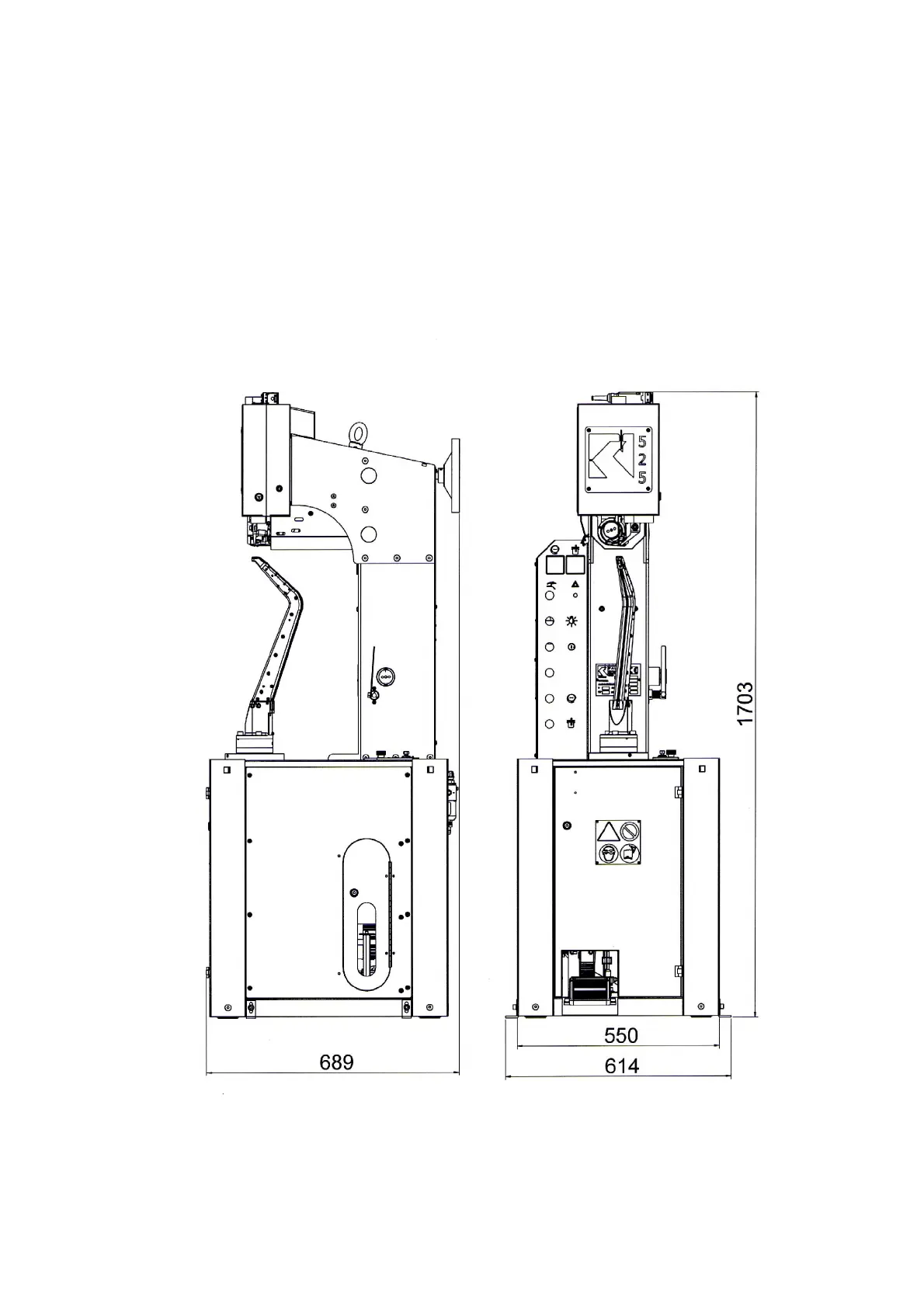

The maximum measurements of the Mod. 525N machine are shown in the drawing below.
Drawing N° 5.
During machine installation, the pallet fixing brackets are removed, so the width of the machine is reduced
from 689 mm to 550 mm.
