6.3.2 Connection to compressed air supply.
Connect the filter-reducer block on the machine with the compressed air supply by sliding the flexible
supply tubing into the appropriate click-on attatchment located on the back wall of the machine base, on
the top right hand side when seen facing the rear of the machine.
Upstream the click-on attatchment is a valve slide which can cut off the air supply to the machine even
when the machine is connected to the compressed air line (see paragraph 6.4.2.: air pressure adjustment. )
The filter-reducer block is located on the back wall of the machine base, exactly near the valve slide.

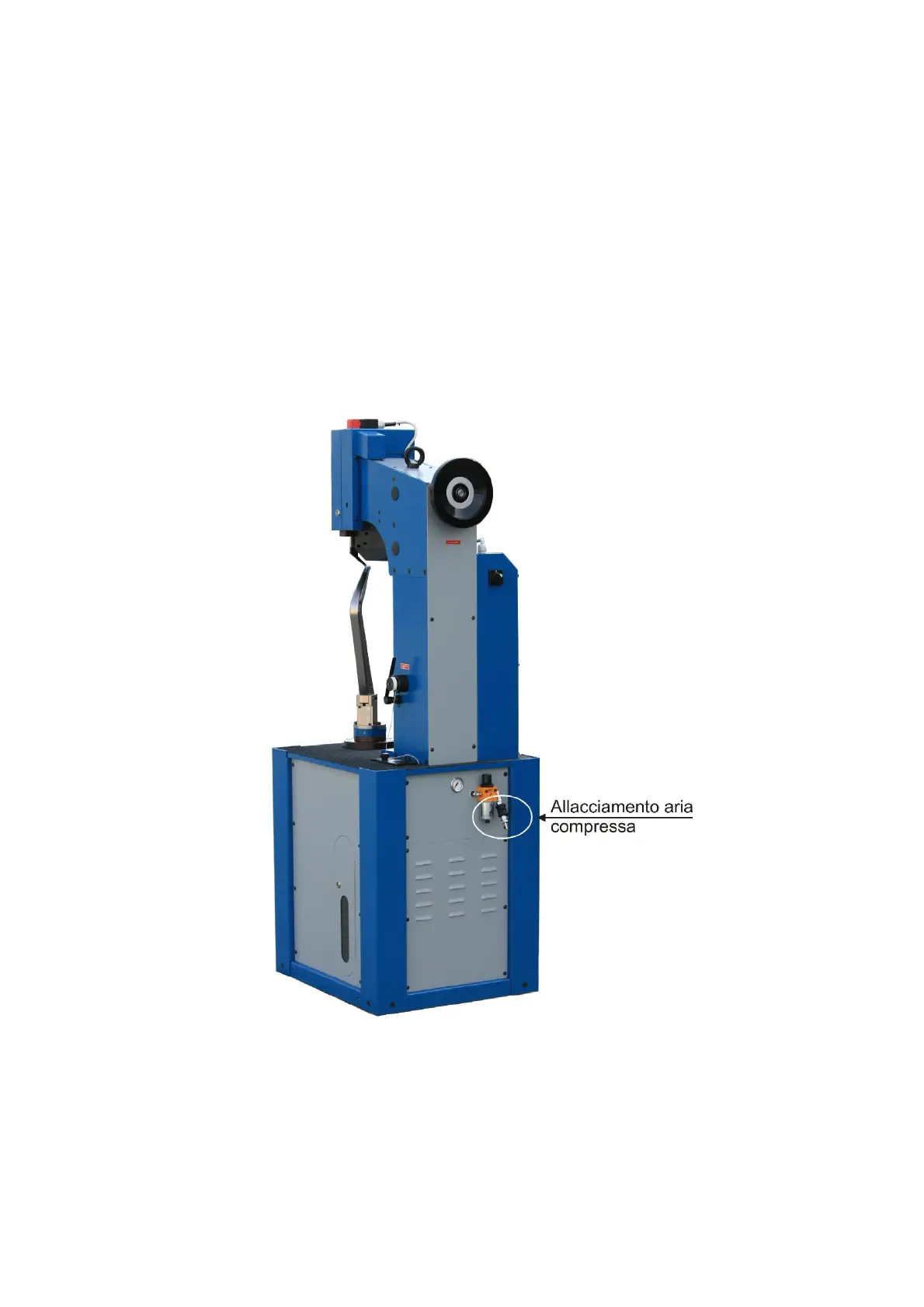

Drawing N°.10
Warning:
Before beginning any maintenance operations, remember to close valve slide located upstream of
the click-on attatchment mounted on the machine, and to empty all the compressed air from the
pneumatic installation.
Compressed air
connection
