6.4.2. Compressed air adjustment.
Set the compressed air supply rate for the machine by using the pressure setting knob located on the filter-
reducer block.
The established pressure rating is visible on the pressure gauge dial.
Warning:
Recommended pressure: 5 bar.

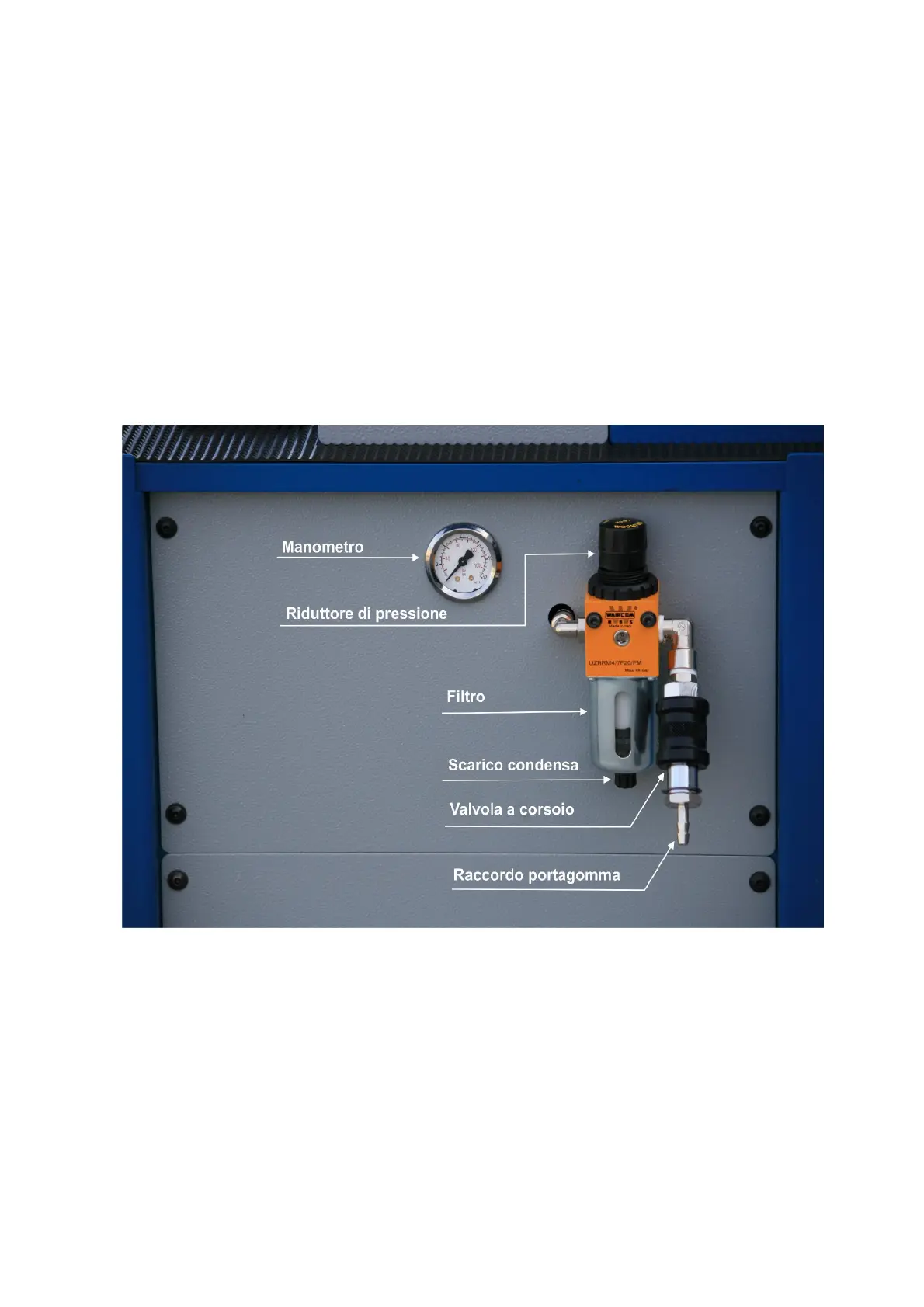

Drawing 12.
Pressure reducer
Pressure gauge
Condensation discharge
Filter
